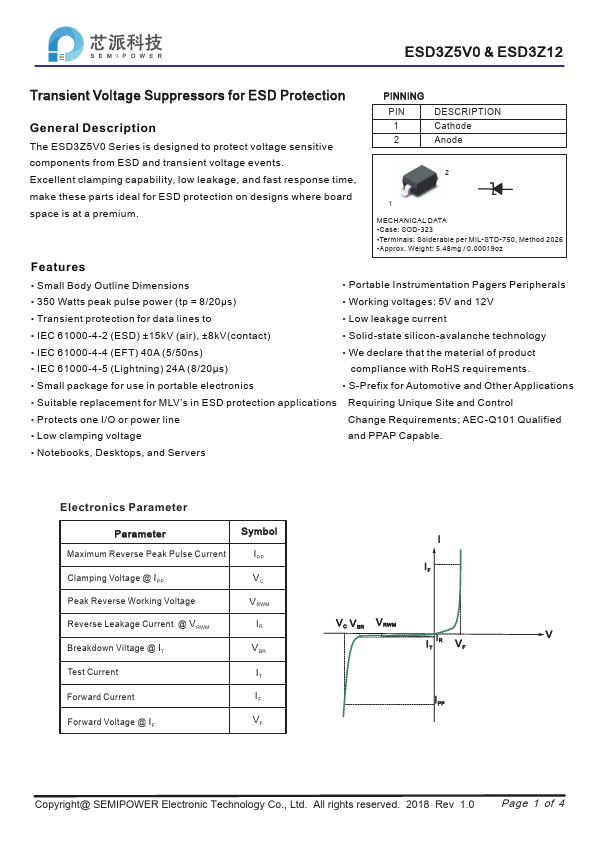

ESD3Z5V0
Description
The ESD3Z5V0 Series is designed to protect voltage sensitive ponents from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium.
PINNING PIN 1 2
DESCRIPTION
Cathode Anode
MECHANICAL DATA
- Case: SOD-323
- Terminals: Solderable per MIL-STD-750, Method 2026
- Approx. Weight: 5.48mg / 0.00019oz
Features
- Small Body Outline Dimensions
- Portable Instrumentation Pagers Peripherals
- 350 Watts peak pulse power (tp = 8/20μs)
- Working voltages: 5V and 12V
- Transient protection for data lines to
- Low leakage current
- IEC 61000-4-2 (ESD) ±15k V (air), ±8k V(contact)
- Solid-state silicon-avalanche technology
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- We declare that the material of product
- IEC 61000-4-5 (Lightning) 24A (8/20μs) pliance with Ro HS requirements.
- Small package for use in portable electronics
- S-Prefix for Automotive...
