1N5339B Overview
1N5333B THRU 1N5388B 5 WATT SILICON ZENER DIODES Suffix " B " indicates ± 5% tolerance, suffix " A " indicates ± 10% tolerance. Features • plete voltage range 3.3 to 200 Volts • High peak reverse power dissipation • High reliability • Low leakage current Mechanical Characteristics • Case: D2A Molded plastic. • Epoxy: UL94V-O rate flame retardant • Lead: Axial lead solderable per MIL-STD-202, method 208 guaranteed. • Polarity: Color band denotes cathode end • Mounting position: Any
1N5339B Key Features
- plete voltage range 3.3 to 200 Volts
- High peak reverse power dissipation
- High reliability
- Low leakage current

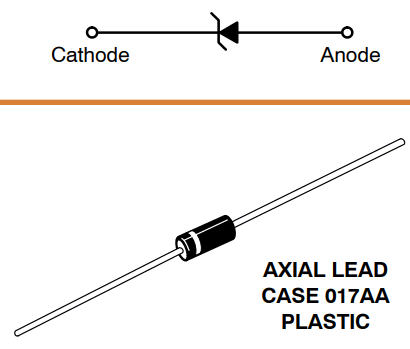

- Case: D2A Molded plastic
- Epoxy: UL94V-O rate flame retardant
- Lead: Axial lead solderable per MIL-STD-202, method 208 guaranteed
- Polarity: Color band denotes cathode end
- Mounting position: Any
