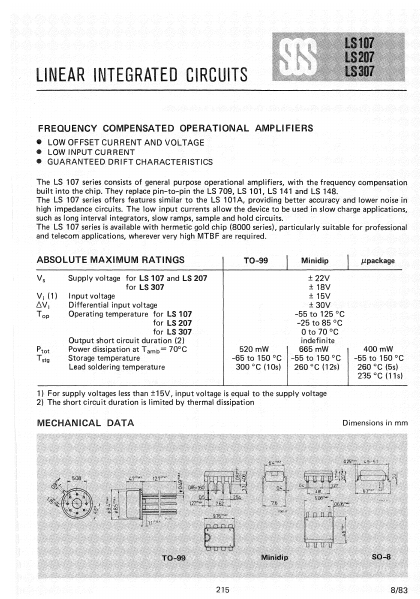

LS307 Overview
LINEAR INTEGRATED CIRCUITS FREQUENCY PENSATED OPERATIONAL AMPLIFIERS LOW OFFSET CURRENT AND VOLTAGE LOW INPUT CURRENT GUARANTEED DRIFT CHARACTERISTICS The LS 107 series consists of general purpose operational amplifiers, with the frequency pensation built into the chip. They replace pin-to-pin the LS 709, LS 101, LS 141 and LS 148.
