SP2798B - Main Line Power Up Non-Isolated Buck APFC LED Driver

Download the SP2798B datasheet PDF. This datasheet also covers the SP2798A variant, as both devices belong to the same main line power up non-isolated buck apfc led driver family and are provided as variant models within a single manufacturer datasheet.

General Description

The SP2788Xare built-in HV start-up and IC power supply circuit, main line power up constant current LED regulators with high current accuracy which applies to single stage step-down power factor corrected LED drivers.

Key Features

  • Active PFC for High power factor and low THD.
  • Built-in HV start-up and IC power supply circuit, The VDD power supply resistors and power feedback circuits from LED chips are not needed.
  • 600V high voltage MOSFET integrated.
  • ±3% LED output current accuracy.
  • Excellent line and load regulation.
  • Quasi-Resonant (QR) Buck topology.
  • System efficiency up to 95%.
  • Ultra low start up & operating current.
  • Cycle-by-cycle cur.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SP2798A-SPMICRO.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SP2798B
Manufacturer SPMICRO
File Size 588.60 KB
Description Main Line Power Up Non-Isolated Buck APFC LED Driver
Datasheet download datasheet SP2798B Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SP2700 Dual N-Channel Enhancement Mode Field Effect Transistor SamHop Microelectronics
SP2702 Dual N-Channel Enhancement Mode Field Effect Transistor SamHop Microelectronics
SP200 +5V High-Speed RS-232 Transceivers with 0.1mF Capacitors Sipex
SP200F (SP200F / SP250F) Rectifier Stacks VMI
SP200S (SP200S / SP250S) Rectifier Stacks VMI

Other Datasheets by SPMICRO

Part Number Description
SP2798A Main Line Power Up Non-Isolated Buck APFC LED Driver
SP2798C Main Line Power Up Non-Isolated Buck APFC LED Driver
SP2788A Main Line Power Up Non-Isolated Buck APFC LED Driver
SP2788B Main Line Power Up Non-Isolated Buck APFC LED Driver
SP2788C Main Line Power Up Non-Isolated Buck APFC LED Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

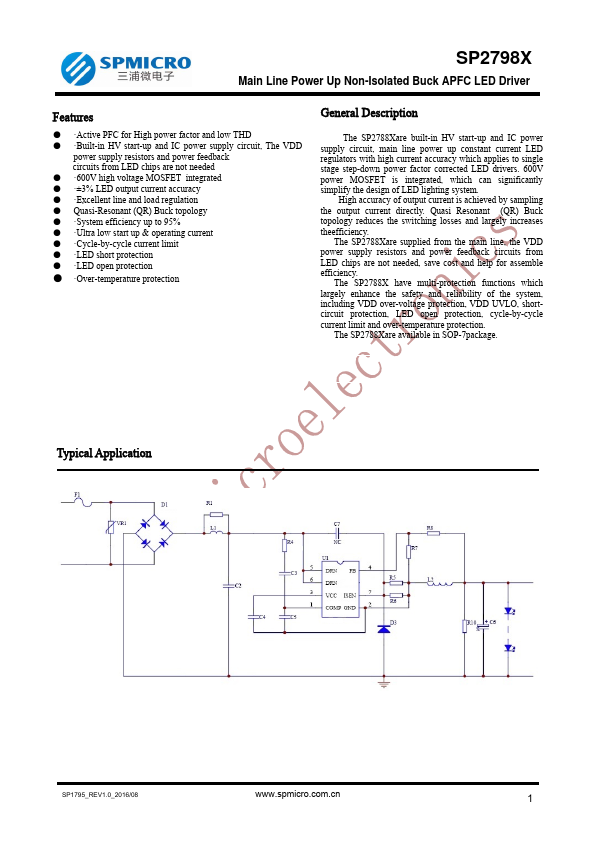

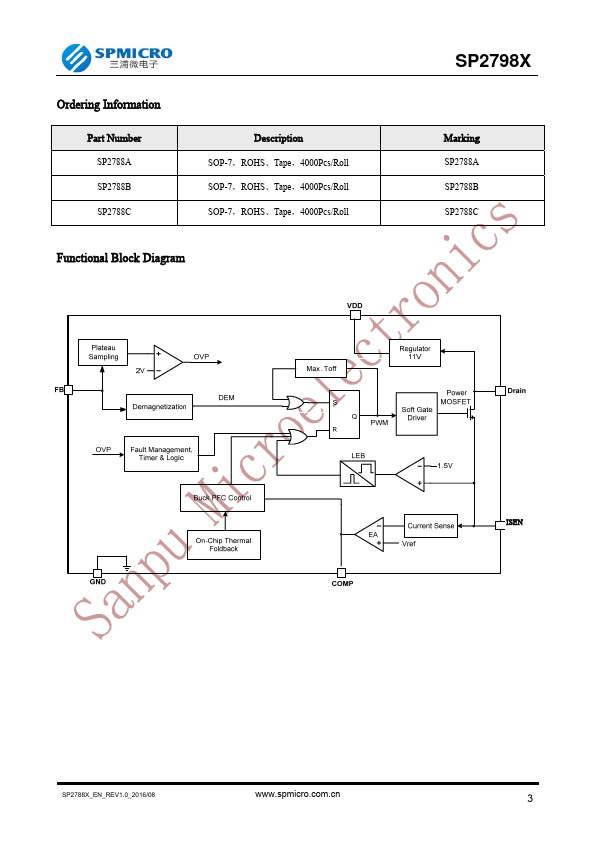

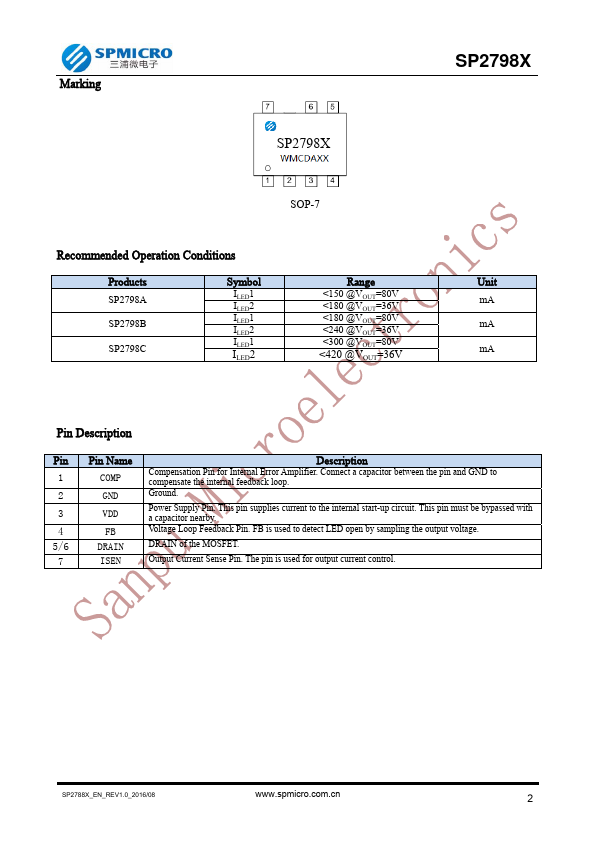

SP2798X Main Line Power Up Non-Isolated Buck APFC LED Driver Features ● ·Active PFC for High power factor and low THD ● ·Built-in HV start-up and IC power supply circuit, The VDD power supply resistors and power feedback circuits from LED chips are not needed ● ·600V high voltage MOSFET integrated ● ·±3% LED output current accuracy ● ·Excellent line and load regulation ● Quasi-Resonant (QR) Buck topology ● ·System efficiency up to 95% ● ·Ultra low start up & operating current ● ·Cycle-by-cycle current limit ● ·LED short protection ● ·LED open protection ● ·Over-temperature protection General Description The SP2788Xare built-in HV start-up and IC power supply circuit, main line power up constant current LED regulators with high current accuracy which applies to single stage step-down powe
