ESDALC6V1-1U2 - TVS Clamping Arrays

General Description

The ESDALC6V1-1U2 is a unidirectional single line TVS diode designed to protect the data lines or other I/O ports against ESD transients.

The device is ideal for applications where both reduced line capacitance and board space saving are required.

Key Features

  • Breakdown voltage VBR = 6.1 V min. Unidirectional device Multiple ESD strike sustainability Very low diode capacitance: 12 pF typ. at 0 V Low leakage current 0201 SMD package size compatible Ultra small PCB area: 0.18 mm2 RoHS compliant Figure 1. ST0201 package Benefits.
  • Functional diagram (top view) High ESD protection level High integration Suitable for high density boards MSL1 Complies with the following standards:.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ESDALC6V1-1BM2 Single line low capacitance STMicroelectronics
ESDALC6V1-1BM2 TVS Diode Leiditech
ESDALC6V1-1M2 Single line low capacitance Transil STMicroelectronics
ESDALC6V1-5M6 (ESDALC6V1xxM6) 4 and 5 line low capacitance TRANSIL array STMicroelectronics
ESDALC6V1-5P6 ESD protection STMicroelectronics

Other Datasheets by STMicroelectronics

Part Number Description
ESDALC6V1-1BT2 Single line low capacitance Transil
ESDALC6V1-1BU2 Single-line low capacitance
ESDALC6V1-5T6 TVS Clamping Arrays
ESDA14V2-1BF3 TVS Clamping Array
ESDA14V2-4BF3 Quad bidirectional TRANSIL array

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

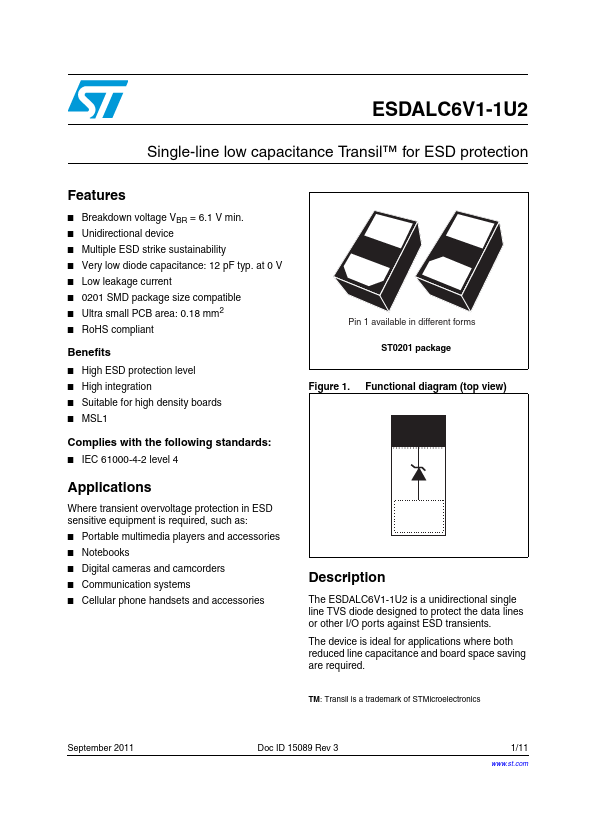

www.DataSheet4U.com ESDALC6V1-1U2 Single-line low capacitance Transil™ for ESD protection Features ■ ■ ■ ■ ■ ■ ■ ■ Breakdown voltage VBR = 6.1 V min. Unidirectional device Multiple ESD strike sustainability Very low diode capacitance: 12 pF typ. at 0 V Low leakage current 0201 SMD package size compatible Ultra small PCB area: 0.18 mm2 RoHS compliant Figure 1.
