ST7540 - FSK power line transceiver

Datasheet Summary

Description

The ST7540 is a Half Duplex synchronous/asynchronous FSK Modem designed for power line communication network applications.

It operates from a single supply voltage and integrates a line driver and two linear regulators for 5V and 3.3V.

Features

  • Half-duplex frequency shift keying (FSK) transceiver Integrated power line driver with programmable voltage and current control Programmable mains access:.
  • Synchronous.
  • Asynchronous Single supply voltage (from 7.5V up to 13.5V) Very low power consumption (Iq = 5mA) Integrates 5V voltage regulator (up to 50mA) with short circuit protection Integrated 3.3V voltage regulator (up to 50mA) with short circuit protection 3.3V or 5V digital supply 8 Programmable tran.

📥 Download Datasheet

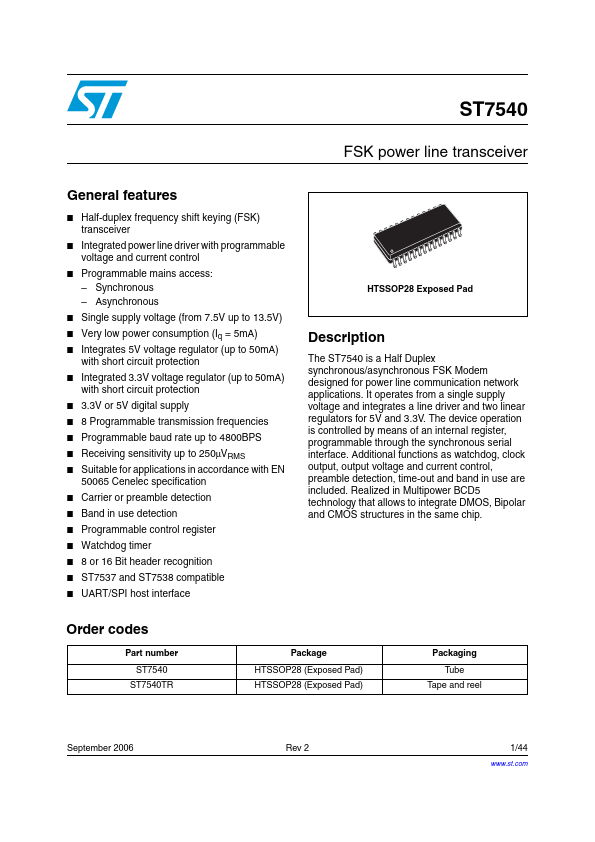

Datasheet preview – ST7540

Datasheet Details

Part number ST7540
Manufacturer STMicroelectronics
File Size 361.19 KB
Description FSK power line transceiver
Datasheet download datasheet ST7540 Datasheet

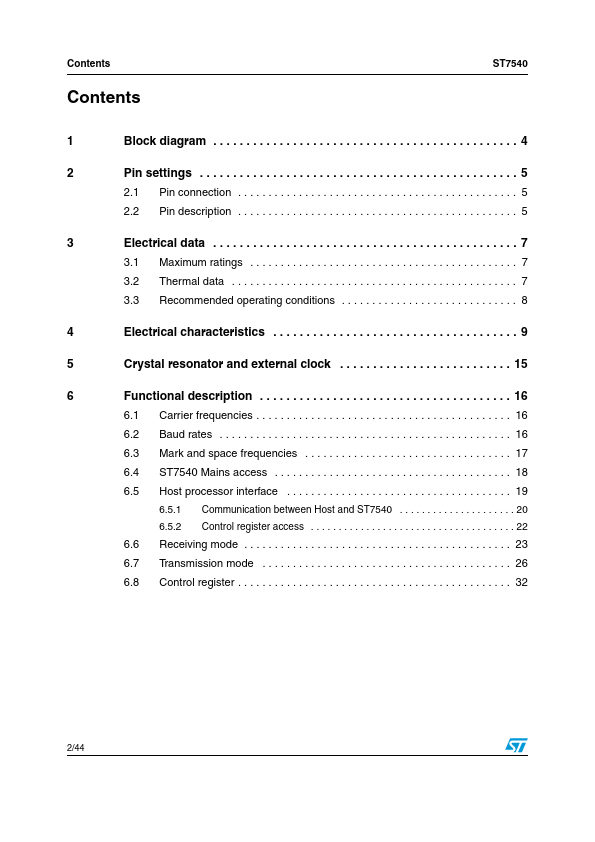

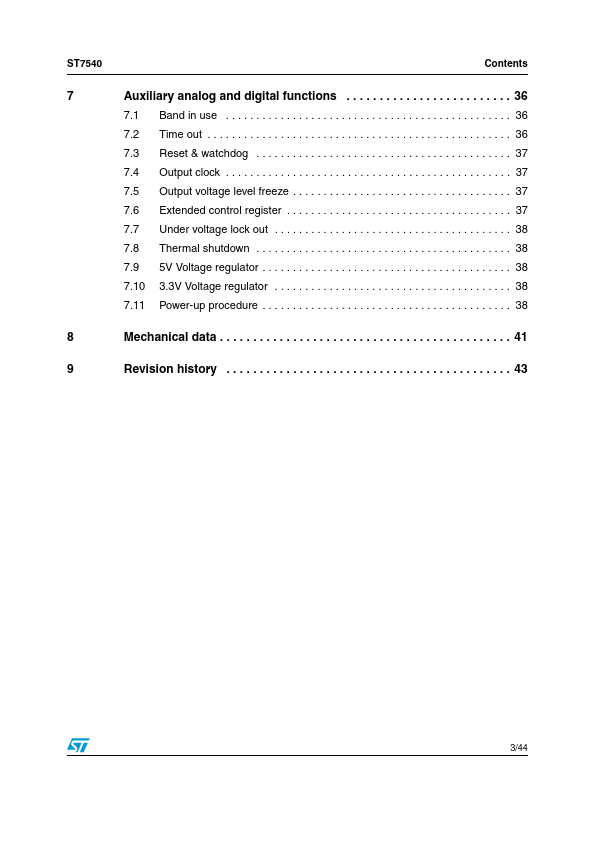

Additional preview pages of the ST7540 datasheet.
