STB140NF75 Datasheet | STMicroelectronics

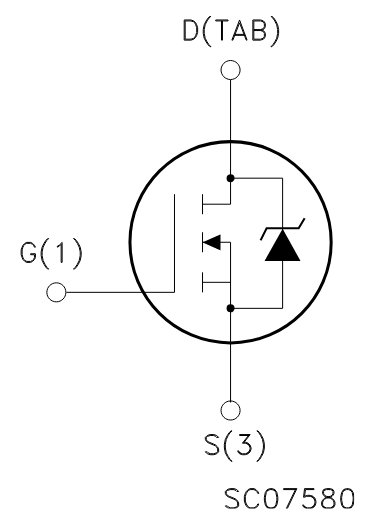

ures Type STB140NF75 STB140NF75-1 STP140NF75 VDSS 75V 75V 75V RDS(on) <0.0075Ω <0.0075Ω <0.0075Ω ID 120A(1) 120A(1) 120A(1) TO-220 1 2 3 3 1 D2PAK 1. Current limited by package - 100% avalanche tested 3 12 Description This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process. The resulting transistor shows extremely high packing density for low on Internal resistance, rugged avalanche characteristics and less critical alignment steps therefore a .. remarkable manufacturing reproducibility. I2PAK schematic diagram Applications - Switching application Order codes Part number STB140NF75T4 STB140NF75-1 STP140NF75 Marking B140NF75 B140NF75 P140NF75 Package D I 2PAK 2PAK Packaging Tape & reel Tube Tube TO-220 June 2006 Rev 4 1/18 .st. 18 Contents - STP140NF75-1 - STP140NF75 Contents 1 2 Electrical ratings - - - - -...
