STI5518 Datasheet Single-chip Set-top Box Decoder With Hard Disk Drive And Mp3

Manufacturer: STMicroelectronics

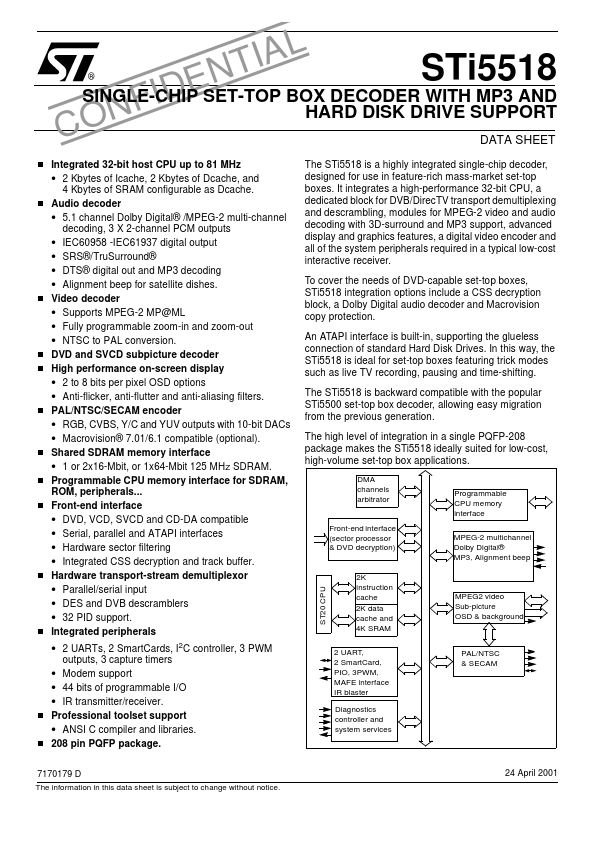

Overview: ® CO n n SINGLE-CHIP SET-TOP BOX DECODER WITH MP3 AND HARD DISK DRIVE SUPPORT DATA SHEET The STi5518 is a highly integrated single-chip decoder, designed for use in feature-rich mass-market set-top boxes.

Key Features

  • a digital video encoder and all of the system peripherals required in a typical low-cost interactive receiver. To cover the needs of DVD-capable set-top boxes, STi5518 integration options include a CSS decryption block, a Dolby Digital audio decoder and Macrovision copy protection. An ATAPI interface is built-in, supporting the glueless connection of standard Hard Disk Drives. In this way, the STi5518 is ideal for set-top boxes featuring trick modes such as live TV recording, pausing and time-s.
