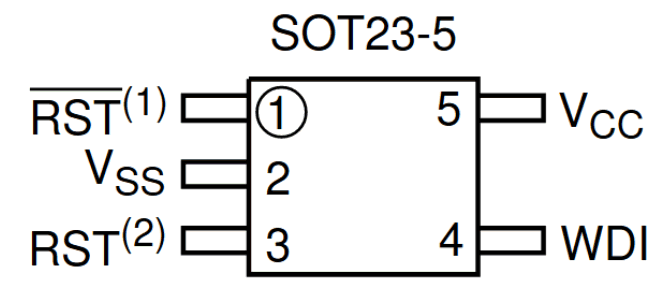

STM6321 - 5-pin supervisor

General Description

The STM6xxx supervisors are self-contained devices which provide microprocessor supervisory functions.

A precision voltage reference and comparator monitors the VCC input for an out-of-tolerance condition.

Key Features

  • Precision VCC monitoring of 5, 3.3, 3, or 2.5 V power supplies.
  • RST outputs (active low, push-pull or open drain).
  • RST outputs (active high, push-pull).
  • Reset pulse width of 1.4 ms, 200 ms and 240 ms (typ. ).
  • Watchdog timeout period of 1.6 s (typ. ).
  • Manual reset input (MR).
  • Low supply current - 3 µA (typ. ).
  • Guaranteed RST (RST) assertion down to VCC = 1.0 V.
  • Operating temperature:.
  • 40 to +85 °C (industrial.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
STM6316 DVD Optical Disc STMicroelectronics
STM6375 P-Channel Enhancement Mode MOSFET SamHop Microelectronics
STM6375 P-Channel 20V MOSFET VBsemi
STM6510 Dual push-button Smart Reset STMicroelectronics
STM6519 4-pin Smart Reset STMicroelectronics

Other Datasheets by STMicroelectronics

Part Number Description
STM6322 5-pin supervisor
STM6315 Open Drain Microprocessor Reset
STM6502 (STM6502 - STM6505) Dual push-button smart reset
STM6503 (STM6502 - STM6505) Dual push-button smart reset
STM6504 (STM6502 - STM6505) Dual push-button smart reset

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
STM632x, STM682x 5-pin supervisor with watchdog timer and push-button reset Datasheet - production data 627/ Features • Precision VCC monitoring of 5, 3.3, 3, or 2.5 V power supplies • RST outputs (active low, push-pull or open drain) • RST outputs (active high, push-pull) • Reset pulse width of 1.4 ms, 200 ms and 240 ms (typ.) • Watchdog timeout period of 1.6 s (typ.) • Manual reset input (MR) • Low supply current - 3 µA (typ.) • Guaranteed RST (RST) assertion down to VCC = 1.0 V • Operating temperature: –40 to +85 °C (industrial grade) • RoHS compliance Lead-free components are compliant with the RoHS directive Description The STM6xxx supervisors are self-contained devices which provide microprocessor supervisory functions.
