STM6823 - 5-pin supervisor

This page provides the datasheet information for the STM6823, a member of the STM6321 5-pin supervisor family.

Product Overview

ST Microelectronics

📥 Download Datasheet

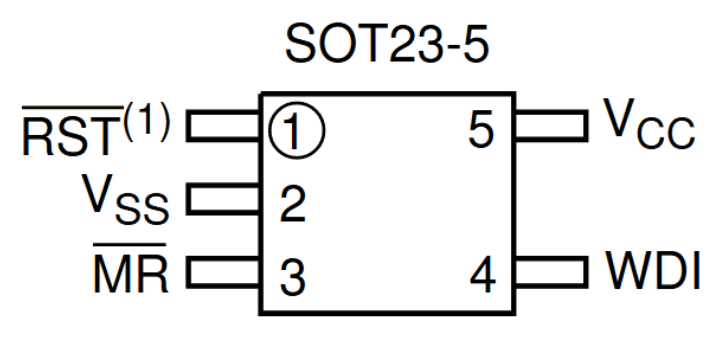

STM6823 5-pin supervisor by ST Microelectronics - Datasheet Preview — Datasheet preview – STM6823

Datasheet Details

Part number	STM6823
Manufacturer	STMicroelectronics
File Size	560.58 KB
Description	5-pin supervisor
Datasheet	STM6823 Datasheet
Additional preview pages of the STM6823 datasheet.

STM6823 Product details

Description

The STM6xxx supervisors are self-contained devices which provide microprocessor supervisory functions.

A precision voltage reference and comparator monitors the VCC input for an out-of-tolerance condition.

Features

Precision VCC monitoring of 5, 3.3, 3, or 2.5 V power supplies.
RST outputs (active low, push-pull or open drain).
RST outputs (active high, push-pull).
Reset pulse width of 1.4 ms, 200 ms and 240 ms (typ. ).
Watchdog timeout period of 1.6 s (typ. ).
Manual reset input (MR).
Low supply current - 3 µA (typ. ).
Guaranteed RST (RST) assertion down to VCC = 1.0 V.
Operating temperature:.
40 to +85 °C (industrial.
