STW45NM60 - N-CHANNEL MOSFET

Datasheet Summary

Description

The MDmesh™ is a new revolutionary Power MOSFET technology that associates the multiple drain process with the Company’s PowerMESH™ horizontal layout.

The resulting product has an outstanding low on-resistance, impressively high dv/dt and excellent avalanche characteristics.

Features

  • Type VDSS (@Tjmax) RDS(on) ID STW45NM60 650V < 0.11Ω 45A.
  • High dv/dt and avalanche capabilities.
  • 100% avalanche tested.
  • Low input capacitance and gate charge.
  • Low gate input resistance.

📥 Download Datasheet

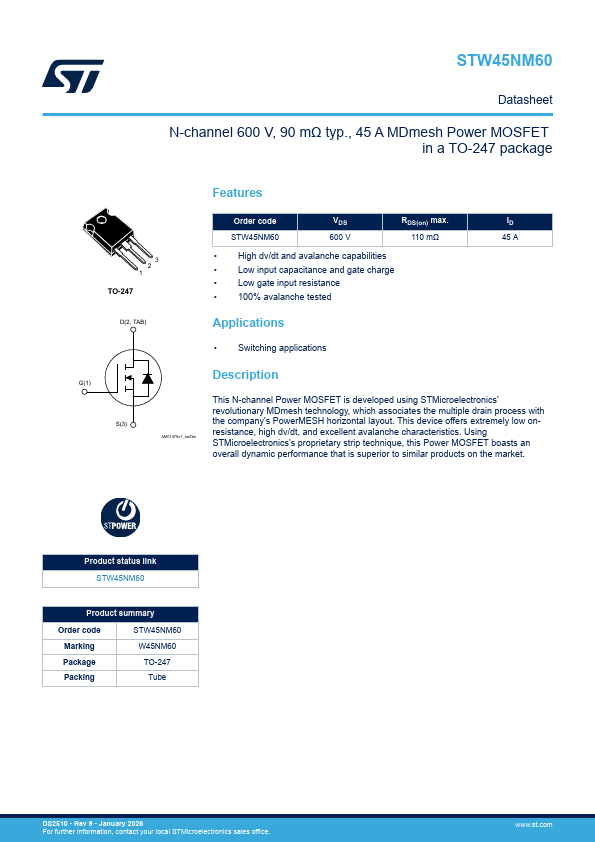

Datasheet preview – STW45NM60

Datasheet Details

Part number STW45NM60
Manufacturer STMicroelectronics
File Size 319.16 KB
Description N-CHANNEL MOSFET
Datasheet download datasheet STW45NM60 Datasheet

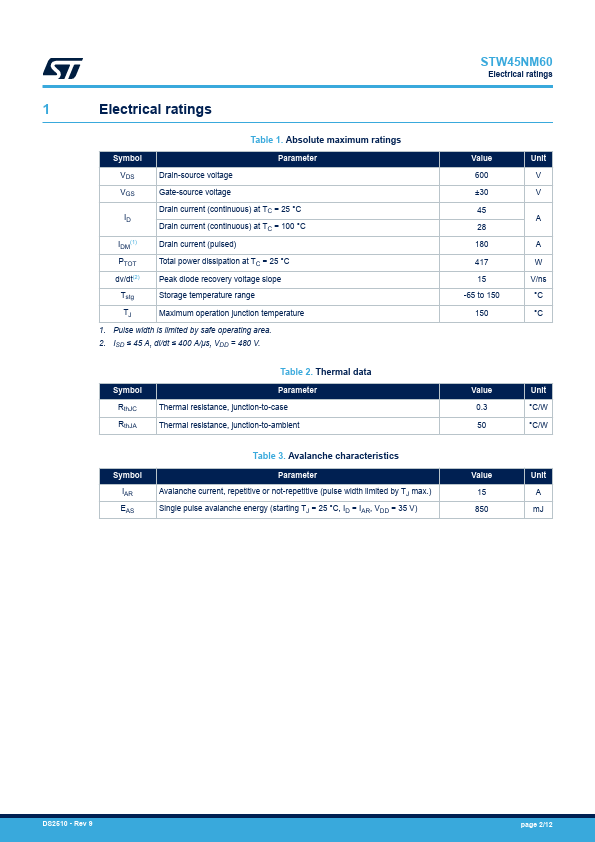

Additional preview pages of the STW45NM60 datasheet.

📁 Similar Datasheet

Other Datasheets by ST Microelectronics

Full PDF Text Transcription

Click to expand full text
STW45NM60 N-channel 650V@Tjmax - 0.09Ω - 45A - TO-247 MDmesh™ Power MOSFET Features Type VDSS (@Tjmax) RDS(on) ID STW45NM60 650V < 0.11Ω 45A ■ High dv/dt and avalanche capabilities ■ 100% avalanche tested ■ Low input capacitance and gate charge ■ Low gate input resistance Description The MDmesh™ is a new revolutionary Power MOSFET technology that associates the multiple drain process with the Company’s PowerMESH™ horizontal layout. The resulting product has an outstanding low on-resistance, impressively high dv/dt and excellent avalanche characteristics. The adoption of the Company’s proprietary strip technique yields overall dynamic performance that is significantly better than that of similar competitor’s products.
