TS9222 - (TS9222 / TS9224) high stability dual and quad operational amplifiers

General Description

The TS9222 and TS9224 are rail-to-rail dual and quad operational amplifiers optimized for precision, noise and stability, which make them suitable for a wide range of automotive and industrial applications.

These devices deliver a high output current that allows low-load impedances to be driven.

Key Features

  • High precision: Vio = 500 µV max Able to drive capacitive loads up to 500 pF Rail-to-rail input and output Low noise: 9 nV/√Hz Low distortion High output current: 80 mA High speed: 4 MHz, 1.3 V/μs Operates from 2.7 V to 12 V ESD internal protection: 2 kV Latch-up immunity P TSSOP8 (Thin shrink small outline package) D SO-8 (Plastic micropackage).

📥 Download Datasheet

Datasheet Details

Part number TS9222
Manufacturer STMicroelectronics
File Size 350.28 KB
Description (TS9222 / TS9224) high stability dual and quad operational amplifiers
Datasheet download datasheet TS9222 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TS920E Lithium Rechargeable Battery Seiko
TS9230 3A Ultra Low Dropout Voltage Regulator Taiwan Semiconductor
TS924A Rail-to-rail output current quad operational amplifier STMicroelectronics
TS9001 300mA CMOS Low Dropout Voltage Regulator Taiwan Semiconductor Company
TS9001 1.6V Nanopower Comparator Touchstone Semiconductor

Other Datasheets by STMicroelectronics

Part Number Description
TS922 RAIL TO RAIL HIGH OUTPUT CURRENT QUAD OPERATIONAL AMPLIFIER
TS9224 (TS9222 / TS9224) high stability dual and quad operational amplifiers
TS921 RAIL TO RAIL HIGH OUTPUT CURRENT QUAD OPERATIONAL AMPLIFIER
TS924 RAIL TO RAIL HIGH OUTPUT CURRENT QUAD OPERATIONAL AMPLIFIER
TS925 RAIL TO RAIL HIGH OUTPUT CURRENT QUAD OPERATIONAL AMPLIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

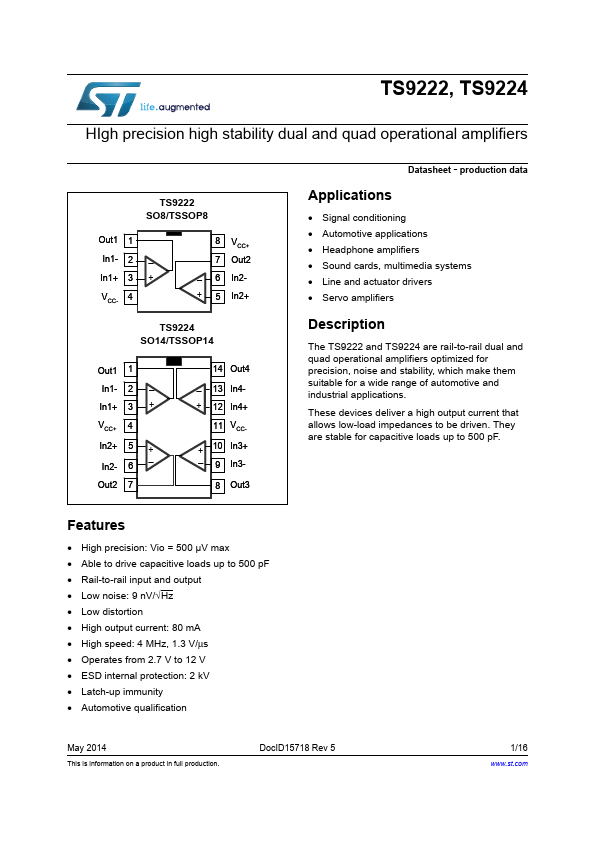

TS9222, TS9224 High precision, high stability dual and quad operational amplifiers Features ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ High precision: Vio = 500 µV max Able to drive capacitive loads up to 500 pF Rail-to-rail input and output Low noise: 9 nV/√Hz Low distortion High output current: 80 mA High speed: 4 MHz, 1.3 V/μs Operates from 2.7 V to 12 V ESD internal protection: 2 kV Latch-up immunity P TSSOP8 (Thin shrink small outline package) D SO-8 (Plastic micropackage) Applications ■ ■ ■ ■ ■ ■ Signal conditioning Automotive applications Headphone amplifiers Sound cards, multimedia systems Line and actuator drivers Servo amplifiers D SO-14 (Plastic micropackage) www.DataSheet4U.
