BDX53B - COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS

General Description

The devices are manufactured in planar base island technology with monolithic Darlington configuration.

Figure 1.

Table 1.

Key Features

  • Good hFE linearity.
  • High fT frequency.
  • Monolithic Darlington configuration with integrated antiparallel collector-emitter diode.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BDX53B Plastic Medium-Power Complementary Silicon Transistors Motorola Inc
BDX53B Plastic Medium-Power Complementary Silicon Transistors ON Semiconductor
BDX53B NPN Epitaxial Silicon Transistor Fairchild Semiconductor
BDX53B NPN Transistor TRANSYS
BDX53B NPN Transistor INCHANGE

Other Datasheets by STMicroelectronics

Part Number Description
BDX53C COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS
BDX53F COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS
BDX54B COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS
BDX54C COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS
BDX54F COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

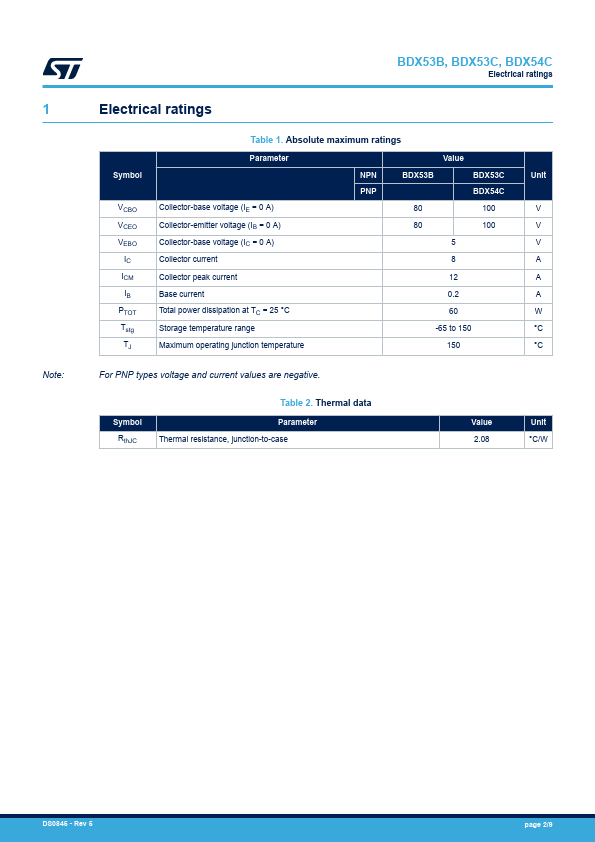

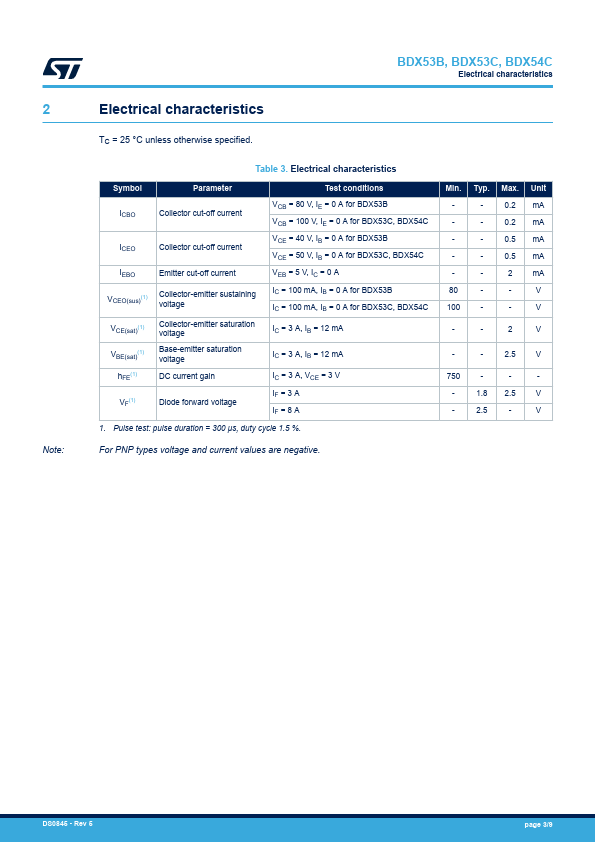

BDX53B - BDX53C BDX54B - BDX54C Complementary power Darlington transistors Features ■ Good hFE linearity ■ High fT frequency ■ Monolithic Darlington configuration with integrated antiparallel collector-emitter diode Application ■ Audio amplifiers ■ Linear and switching industrial equipment Description The devices are manufactured in planar base island technology with monolithic Darlington configuration. 3 2 1 TO-220 Figure 1. Internal schematic diagram Table 1. Device summary Order code BDX53B BDX53C BDX54B BDX54C Marking BDX53B BDX53C BDX54B BDX54C R1 typ.= 10 kΩ R2 typ.= 150 Ω Package TO-220 Packaging Tube October 2007 Rev 4 1/7 www.st.com 7 Electrical ratings 1 Electrical ratings BDX53B - BDX53C - BDX54B - BDX54C Note: Table 2.
