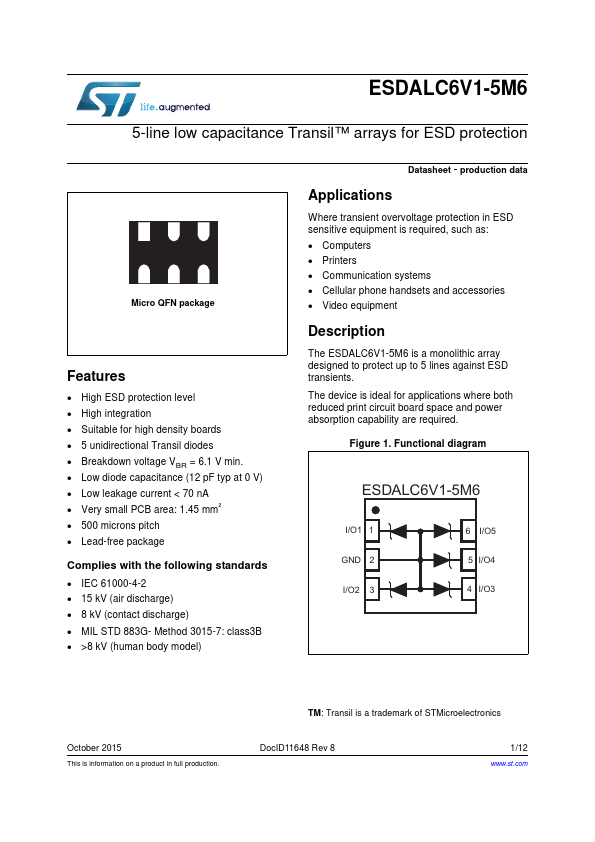

STMicroelectronics ESDALC6V1-5M6
The ESDALC6V1-5M6 is a monolithic array designed to protect up to 5 lines against ESD transients. The device is ideal for applications where both reduced print circuit board space and power absorption capability are required.| Part No. | ESDALC6V1-5M6 |
|---|---|
| Datasheet | ESDALC6V1-5M6 Download |
| Manufacturer |  STMicroelectronics |
| Description | 5-line low capacitance Transil arrays |
| Buy | Stock & Price |
FEATURES
● High ESD protection level● High integration
● Suitable for high density boards
● 5 unidirectional Transil diodes
● Breakdown voltage VBR = 6.1 V min.
● Low diode capacitance (12 pF typ at 0 V)
● Low leakage current < 70 nA
● Very small PCB area: 1.45 mm²
● 500 microns pitch
● Lead-free package Complies with the following standards
● IEC 61000-4-2
● 15 kV (air discharge)
● 8 kV (contact discharge)
● MIL STD 883G- Method 3015-7: class3B
● >8 kV (human body model) Datasheet - production data
APPLICATIONS
Where transient overvoltage protection in ESD sensitive equipment is required, such as:● Computers
● Printers
● Communication systems
● Cellular phone handsets and accessories
● Video equipment
DESCRIPTION

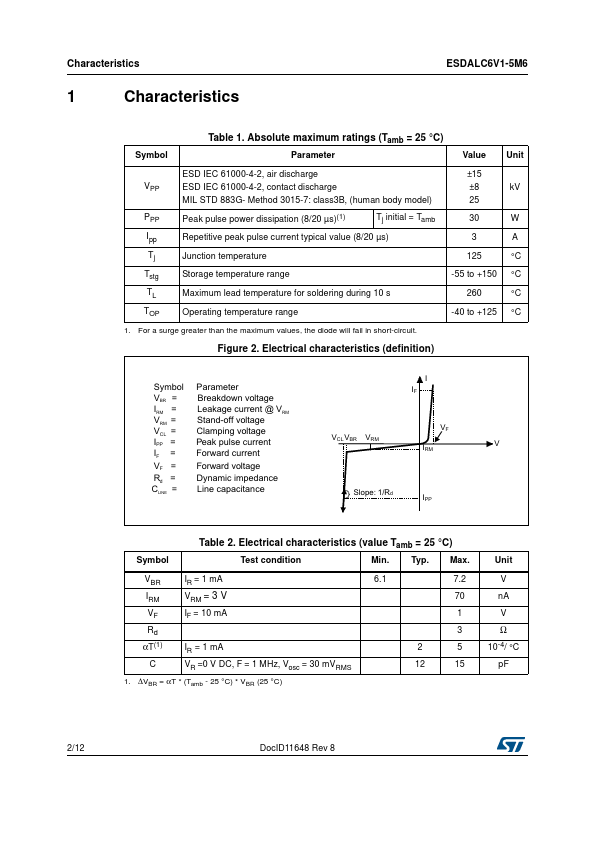

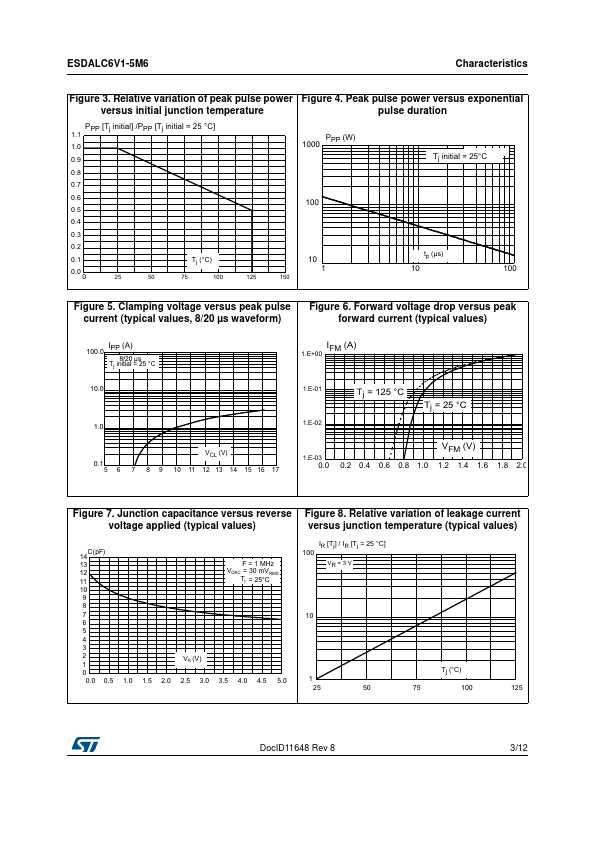

Figure 1. Functional diagram ESDALC6V1-5M6 I/O1 1 GND 2 I/O2 3 6 I/O5 5 I/O4 4 I/O3 October 2015 This is information on a product in full production. TM: Transil is a trademark of STMicroelectronics DocID11648 Rev 8 1/12 Characteristics 1 Characteristics ESDALC6V1-5M6 Symbol Table 1.
