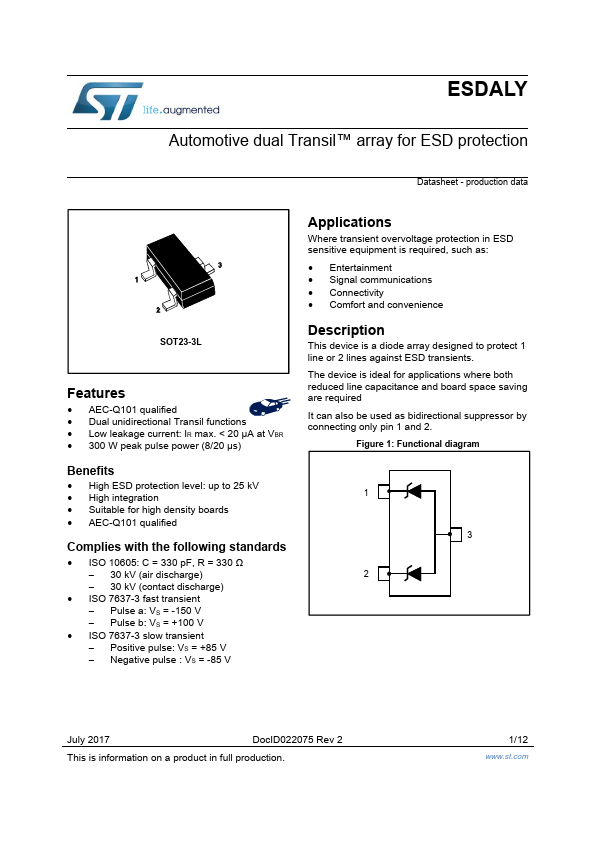

STMicroelectronics ESDALY
This device is a diode array designed to protect 1 line or 2 lines against ESD transients. The device is ideal for applications where both reduced line capacitance and board space saving are required It can also be used as bidirectional suppressor by connecting only pin 1 and 2.| Part No. | ESDALY |
|---|---|
| Datasheet | ESDALY Download |
| Manufacturer |  STMicroelectronics |
| Description | Automotive dual Transil array |
| Buy | Stock & Price |
FEATURES
● AEC-Q101 qualified● Dual unidirectional Transil functions
● Low leakage current: IR max. < 20 µA at VBR
● 300 W peak pulse power (8/20 µs) Benefits
● High ESD protection level: up to 25 kV
● High integration
● Suitable for high density boards
● AEC-Q101 qualified Complies with the following standards
● ISO 10605: C = 330 pF, R = 330 Ω 30 kV (air discharge) 30 kV (contact discharge)
● ISO 7637-3 fast transient Pulse a: VS = -150 V Pulse b: VS = +100 V
● ISO 7637-3 slow transient Positive pulse: VS = +85 V Negative pulse : VS = -85 V
APPLICATIONS
Where transient overvoltage protection in ESD sensitive equipment is required, such as:● Entertainment
● Signal communications
● Connectivity
● Comfort and convenience
DESCRIPTION

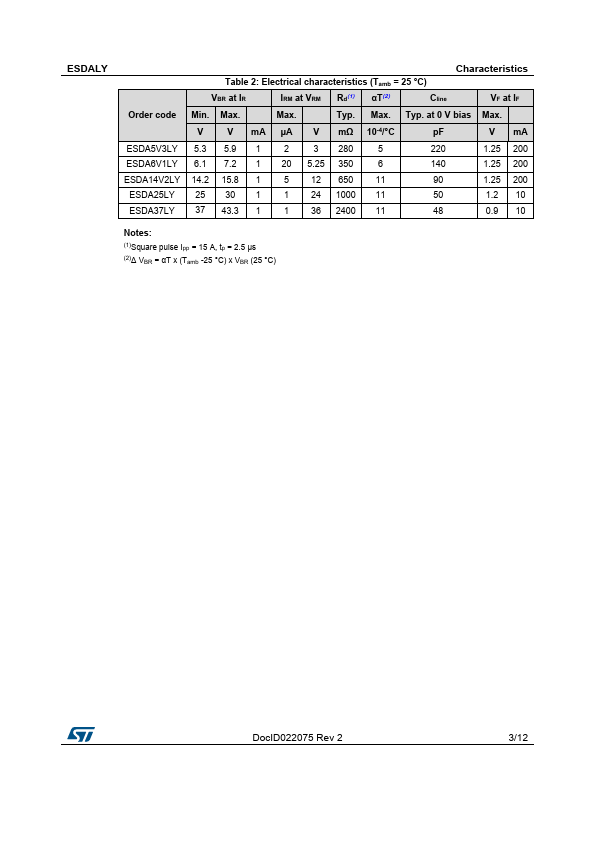

Figure 1: Functional diagram 1 3 2 July 2017 DocID022075 Rev 2 This is information on a product in full production. 1/12 Characteristics ESDALY 1 Characteristics Symbol Vpp Ppp Ipp Tj Tstg TL Table 1: Absolute maximum ratings (Tamb = 25 °C) Par...
