STMicroelectronics FXPS71407BPS
FXPS71407BPS is a PSI5 compatible relative pressure sensor.| Part No. | FXPS71407BPS |
|---|---|
| Datasheet | FXPS71407BPS Download |
| Manufacturer |  STMicroelectronics |
| Description | PSI5 compatible relative pressure sensor |
| Buy | Stock & Price |
FEATURES
● Pressure range: 50.9 kPa to 126.5 kPa absolute pressure range● Operating temperature range: –40°C to 125°C
● PSI5 version 2.1 compatible – Compatible modes: P10P-500/3L, P10P-500/4H, A10P-228/1L, P10CRC-xxx/xx, and many others – Programmable time slots with 1 µs resolution – Selectable baud rate: 125 kBd or 189 kBd – 10-bit data length for relative pressure – 16-bit data length for absolute pressure available with PSI5 Programming mode for test purposes – Selectable error detection: even parity, or 3-bit CRC – Two-wire programming mode

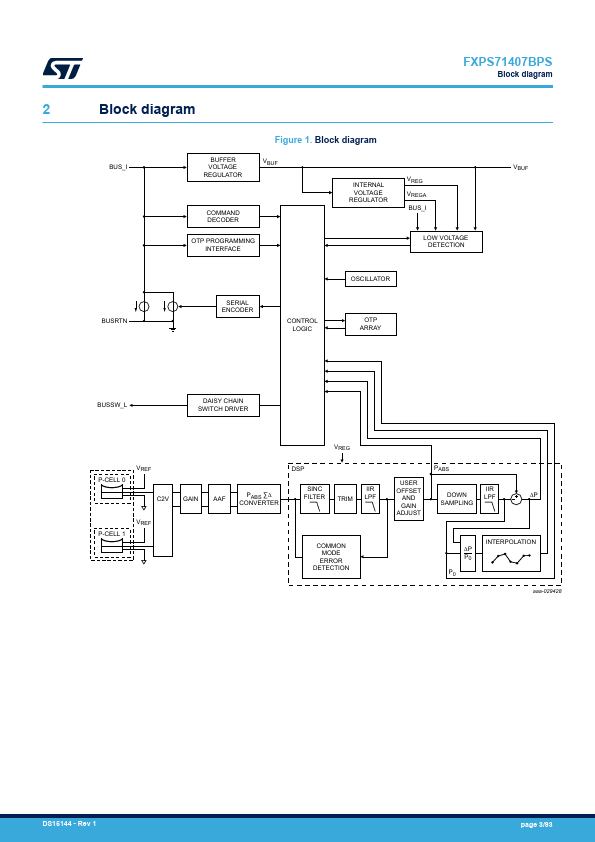

● Pressure transducer and DSP – Redundant pressure transducers – Capacitance to voltage converter with anti-aliasing filter – Sigma delta ADC plus sinc filter – Selectable 370 Hz, 2-pole, or 400 Hz, 3-pole and 4-pole 800 Hz, 1000 Hz low-pass filter for absolute pressure – 0.16 Hz, 1-pole LPF for P0 value – 10-bit ΔP/P0 output
● Pb-free 16-pin QFN 4 mm x 4 mm x 1.98 mm package
● Developed following ISO 26262:2011 standard
DESCRIPTION
DS15144 - Rev 1 - January 2026 For further information, contact your local STMicroelectronics sales office.
