L6258EA Datasheet PWM controlled high current DMOS universal motor driver

Manufacturer: STMicroelectronics

L6258EA pwm controlled high current dmos universal motor driver by STMicroelectronics - Datasheet Preview

Datasheet Details

Part number	L6258EA
Manufacturer	STMicroelectronics
File Size	355.55 KB
Description	PWM controlled high current DMOS universal motor driver
Download	L6258EA Download (PDF)

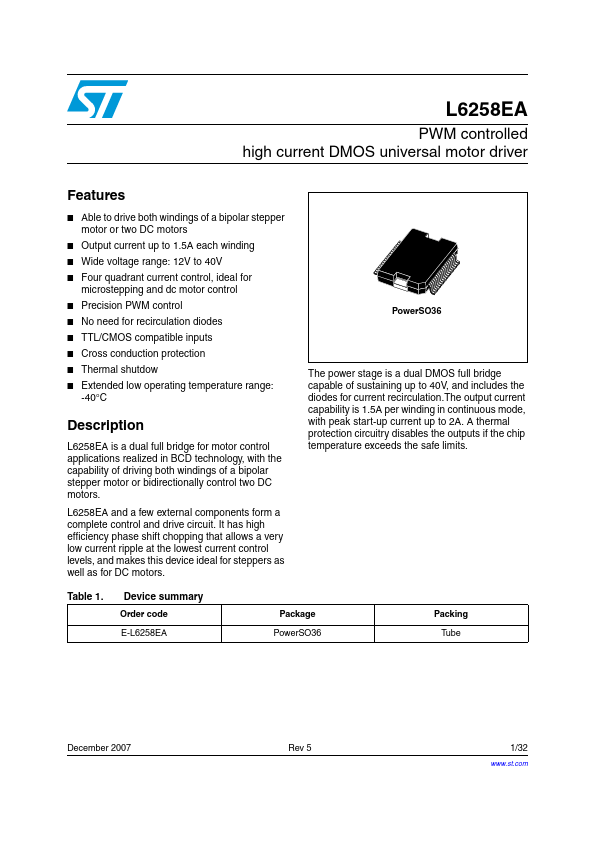

General Description

L6258EA is a dual full bridge for motor control applications realized in BCD technology, with the capability of driving both windings of a bipolar stepper motor or bidirectionally control two DC motors.

L6258EA and a few external components form a complete control and drive circuit.

It has high efficiency phase shift chopping that allows a very low current ripple at the lowest current control levels, and makes this device ideal for steppers as well as for DC motors.

Overview

L6258EA www.datasheet4u.com PWM controlled high current DMOS universal motor.

Key Features

Able to drive both windings of a bipolar stepper motor or two DC motors Output current up to 1.5A each winding Wide voltage range: 12V to 40V Four quadrant current control, ideal for microstepping and dc motor control Precision PWM control No need for recirculation diodes TTL/CMOS compatible inputs Cross conduction protection Thermal shutdow Extended low operating temperature range: -40°C The power stage is a dual DMOS full bridge capa.
