STMicroelectronics L6374FP
L6374 is a fully protected quad channel line driver especially designed to be used in industrial control systems based on the 24 V signal levels (IEC 61131, 24 VDC).| Part No. | L6374FP |
|---|---|
| Datasheet | L6374FP Download |
| Manufacturer |  STMicroelectronics |
| Description | Industrial quad line driver |
| Buy | Stock & Price |
FEATURES
SO-20● Operating voltage range: 10.8 V to 35 V
● Four independent line driver outputs with 100 mA operating current
● Outputs with push-pull architecture, three state control and true zero current between Vs and ground
● High speed operation: up to 300 kHz with 35 V swing
● Current limiting on each output effective in the full "ground to Vs" output voltage range
● Pre-setting delay for overcurrent diagnostic
● Output voltage clamp to Vs and to ground
● Input signals between - 7 V and + 35 V, with pre-setting threshold
● Overtemperature and undervoltage protections
● Diagnostic for overtemperature, undervoltage and overcurrent
APPLICATIONS
Product status link L6374 Order code Package Packaging L6374FP L6374FP013TR SO-20 Tube Tape and reel● Programmable logic controllers
● High-density digital output modules
● Motor controllers
● PWM/PPO control
DESCRIPTION

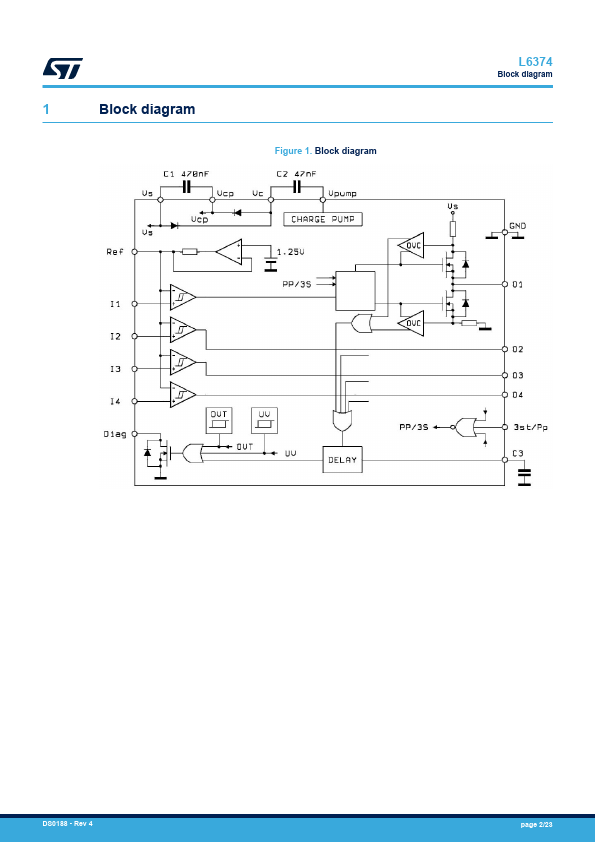

Product label DS0188 - Rev 4 - July 2024 For further information contact your local STMicroelectronics sales office. 1 Block diagram Figure 1.
