L9301 - Automotive octal low side driver or quad low side plus quad high side driver

Datasheet Summary

Description

The L9301 is a SPI (Serial Peripheral Interface) controlled octal channel with 4 high/low and 4 low side drivers with the possibility to use four integrated PowerMOS as recirculation diodes for PWM load driving.

Features

  • AEC-Q100 qualified.
  • Eight integrated PowerMOS configurable as:.
  • 8 low side ON-OFF with RON(max) = 0.3 Ω @ Tj = 175 °C.
  • High/low side PWM with RON(max) = 0.6 Ω @ Tj = 175 °C and 4 Low side with RON(max) = 0.3 Ω @ Tj = 175 °C.
  • Operating battery supply voltage 5 V to 18 V.
  • Operating Vdd supply voltage 4.75 V to 5.25 V.
  • Logic inputs TTL/CMOS-compatible.
  • Output voltage clamping 37 V typ. in low-side configuration.
  • SPI interface for outputs control.

📥 Download Datasheet

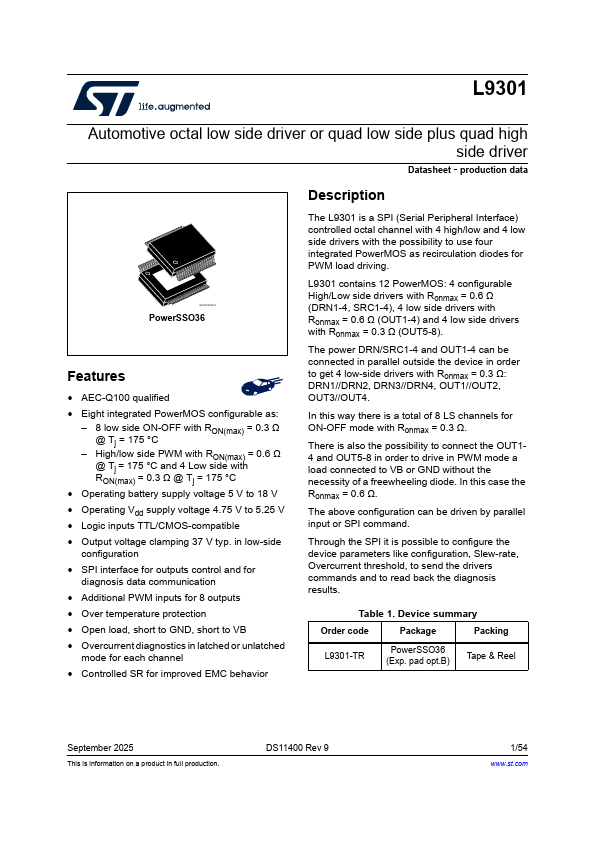

Datasheet preview – L9301

Datasheet Details

Part number L9301
Manufacturer STMicroelectronics
File Size 0.97 MB
Description Automotive octal low side driver or quad low side plus quad high side driver
Datasheet download datasheet L9301 Datasheet

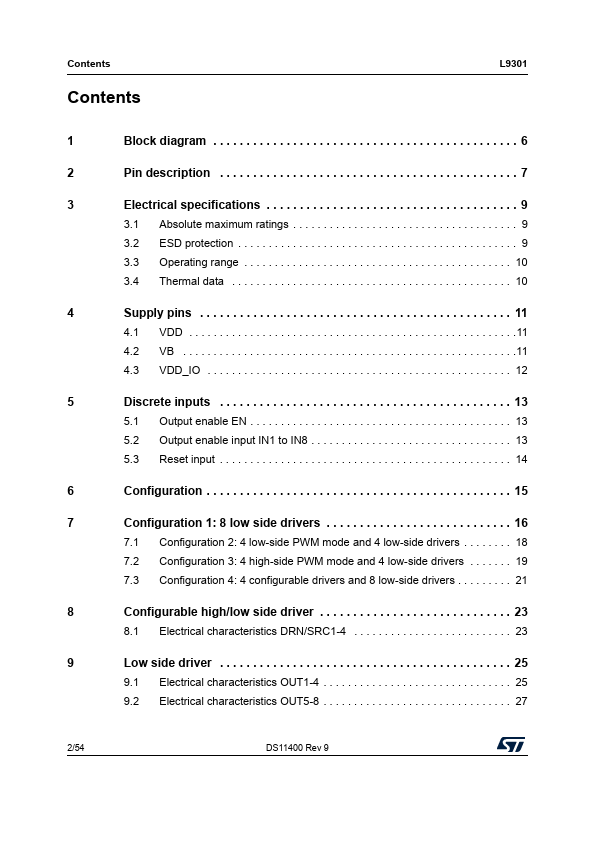

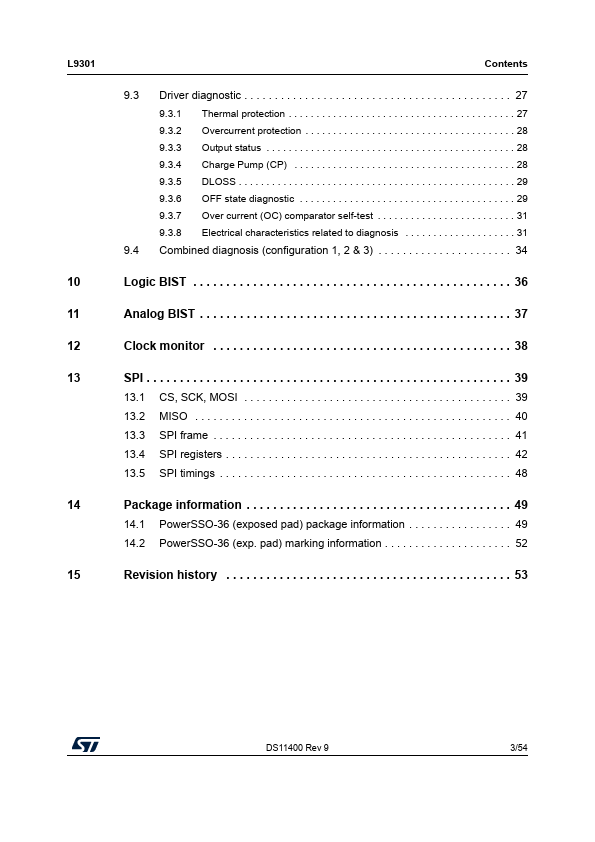

Additional preview pages of the L9301 datasheet.

📁 Similar Datasheet

  • L9307 - Dual High Current Low Side Driver (ST Microelectronics)
  • L9309 - Dual High Current Low Side Driver (ST Microelectronics)
  • L9310 - Line Interface and Line Access Circuit Full-Feature SLIC/Ringing Relay and Test Access Device (Agere Systems)
  • L9311 - Line Interface and Line Access Circuit Full-Feature SLIC (Agere Systems)
  • L9312 - Line Interface and Line Access Circuit Forward Battery SLIC and Ringing Relay (Agere Systems)
  • L9313 - Line Interface and Line Access Circuit Full-Feature SLIC and Ringing (Agere Systems)
  • L934Lxx - T-1(3MM) SUPER BRIGHT LED LAMPS (KINGBRIGHT)
  • L934xx - SOLID STATE LAMPS (Kingbright Corporation)
  • L9353M - IF Filter (EPCOS)
  • L9363 - QUAD INTEGRATED LOW SIDE DRIVER (ST Microelectronics)
Other Datasheets by STMicroelectronics
  • L9300 - Automotive flexible U-chip
  • L9305 - Automotive 4-channel valve driver
  • L9352B - Intelligent quad (2 x 5A / 2 x 2.5A) low-side switch
  • L9396 - Automotive multiple power supply
  • L93PI - QUAD LOW SIDE DRIVER

Full PDF Text Transcription

Click to expand full text
L9301 Automotive octal low side driver or quad low side plus quad high side driver Datasheet - production data GAPGPS00337 PowerSSO36 Features  AEC-Q100 qualified  Eight integrated PowerMOS configurable as: – 8 low side ON-OFF with RON(max) = 0.3 Ω @ Tj = 175 °C – High/low side PWM with RON(max) = 0.6 Ω @ Tj = 175 °C and 4 Low side with RON(max) = 0.3 Ω @ Tj = 175 °C  Operating battery supply voltage 5 V to 18 V  Operating Vdd supply voltage 4.75 V to 5.25 V  Logic inputs TTL/CMOS-compatible  Output voltage clamping 37 V typ.
