LM317B - 1.2V TO 37V VOLTAGE REGULATOR

Download the LM317B datasheet PDF. This datasheet also covers the LM317 variant, as both devices belong to the same 1.2v to 37v voltage regulator family and are provided as variant models within a single manufacturer datasheet.

General Description

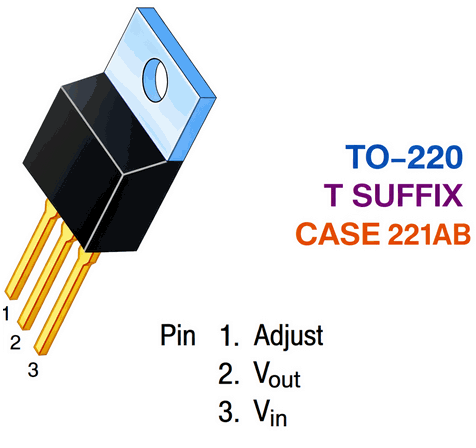

The LM217, LM317 are monolithic integrated circuits in TO-220, TO-220FP and D²PAK packages intended for use as positive adjustable voltage regulators.

They are designed to supply more than 1.5 A of load current with an output voltage adjustable over a 1.2 to 37 V range.

Key Features

  • Output voltage range: 1.2 to 37 V.
  • Output current in excess of 1.5 A.
  • 0.1% line and load regulation.
  • Floating operation for high voltages.
  • Complete series of protections: current limiting, thermal shutdown and SOA control.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LM317_STMicroelectronics.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
LM317BD2T Positive Voltage Regulator ON Semiconductor
LM317BT Positive Voltage Regulator ON Semiconductor
LM317 Adjustable Voltage Regulator Inchange Semiconductor
LM317 Positive Voltage Regulator Linear
LM317 3-Terminal Adjustable Regulator National Semiconductor

Other Datasheets by STMicroelectronics

Part Number Description
LM317BT 1.2V to 37V adjustable voltage regulators
LM317 1.2V to 37V adjustable voltage regulators
LM317D2T 1.2V to 37V adjustable voltage regulators
LM317L Low current 1.2 to 37 V adjustable voltage regulators
LM317M Medium current 1.2 to 37 V adjustable voltage regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
LM217, LM317 Datasheet 1.2 V to 37 V adjustable voltage regulators TO-220 TO-220FP D²PAK Features • Output voltage range: 1.2 to 37 V • Output current in excess of 1.5 A • 0.1% line and load regulation • Floating operation for high voltages • Complete series of protections: current limiting, thermal shutdown and SOA control Description The LM217, LM317 are monolithic integrated circuits in TO-220, TO-220FP and D²PAK packages intended for use as positive adjustable voltage regulators. They are designed to supply more than 1.5 A of load current with an output voltage adjustable over a 1.2 to 37 V range. The nominal output voltage is selected by means of a resistive divider, making the device exceptionally easy to use and eliminating the stocking of many fixed regulators.
