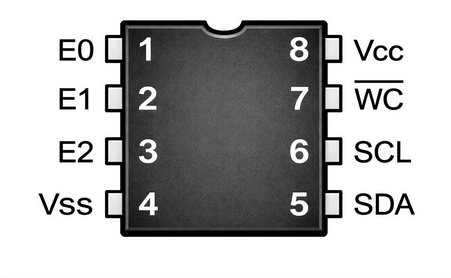

M24C64 - 64-Kbit serial I2C bus EEPROM

This page provides the datasheet information for the M24C64, a member of the M24C64-1 64-Kbit serial I2C bus EEPROM family.

Datasheet Summary

Features

  • Compatible with all I2C bus modes:.
  • 1 MHz.
  • 400 kHz.
  • 100 kHz.
  • Memory array:.
  • 64 Kbit (8 Kbyte) of EEPROM.
  • Page size: 32 byte.
  • Additional Write lockable page (M24C64-D order codes).
  • Single supply voltage:.
  • 1.7 V to 5.5 V over.
  • 40 °C / +85 °C.
  • 1.6 V to 5.5 V over 0 °C / +85 °C.
  • Write:.
  • Byte Write within 5 ms.
  • Page Write within 5 ms.
  • Random and sequential Re.

📥 Download Datasheet

Datasheet preview – M24C64

Datasheet Details

Part number M24C64
Manufacturer STMicroelectronics
File Size 781.56 KB
Description 64-Kbit serial I2C bus EEPROM
Datasheet download datasheet M24C64 Datasheet
Additional preview pages of the M24C64 datasheet.

📁 Similar Datasheet

Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
  PDIP8 (BN) TSSOP8 (DW) 169 mil width SO8 (MN) 150 mil width UFDFPN8 (MC) DFN8 - 2x3 mm UFDFPN5 (MH) DFN5 -1.7x1.4 mm WLCSP (CS) Thin WLCSP (CT) WLCSP (CU) Unsawn wafer M24C64-W M24C64-R M24C64-F M24C64-DF 64-Kbit serial I²C bus EEPROM Datasheet - production data Features • Compatible with all I2C bus modes: – 1 MHz – 400 kHz – 100 kHz • Memory array: – 64 Kbit (8 Kbyte) of EEPROM – Page size: 32 byte – Additional Write lockable page (M24C64-D order codes) • Single supply voltage: – 1.7 V to 5.5 V over –40 °C / +85 °C – 1.6 V to 5.
