STMicroelectronics M74HC4060
The M74HC4060 device is a high speed CMOS 14-stage binary counter/oscillator fabricated with silicon gate C2MOS technology. The oscillator configuration allows design of either RC or crystal oscillator circuits.| Part No. | M74HC4060 |
|---|---|
| Datasheet | M74HC4060 Download |
| Manufacturer |  STMicroelectronics |
| Description | 14-stage binary counter/oscillator |
| Buy | Stock & Price |
FEATURES
● High speed: fmax = 65 MHz (typ.) at VCC = 6 V● Low power dissipation: ICC = 4 A (max.) at TA = 25 °C
● High noise immunity: VNIH = VNIL = 28% VCC (min.)
● Symmetrical output impedance: |IOH| = IOL = 4 mA (min.)
● Balanced propagation delays: TPLH ≅ TPHL
● Wide operating voltage range: VCC (opr.) = 2 V to 6 V
● Pin and function compatible with 74 series 4060
● ESD performance – HBM: 2 kV – MM: 200 V – CDM: 1 kV 14-stage binary counter/oscillator Datasheet - production data
APPLICATIONS
● Automotive● Industrial
● Computer
● Consumer

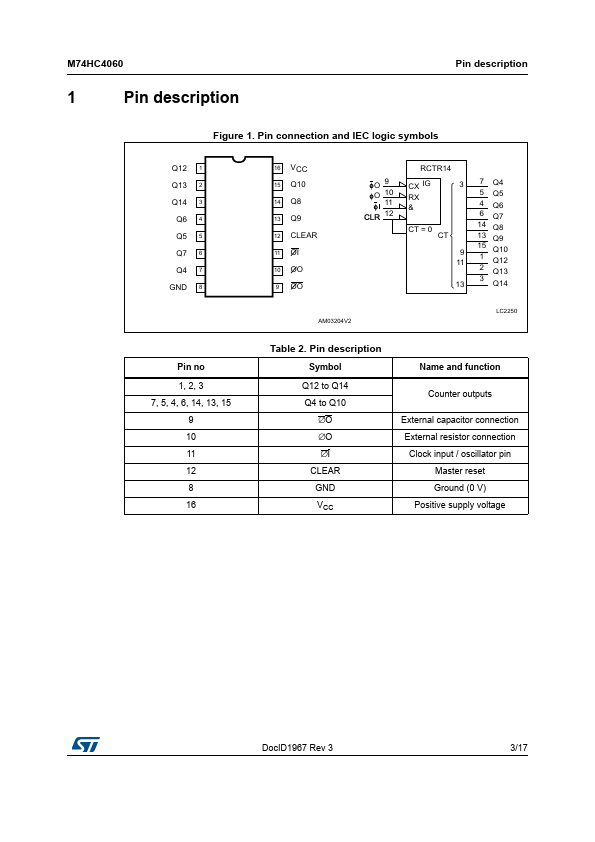

DESCRIPTION
A high level on the CLEAR accomplishes the reset function, i.e. all counter outputs are made low and the oscillator is disabled. A negative transition on the clock input increments the counter. Ten kinds of divided output are provided; 4 to 10 and 12 to 14 stage inclusive. The maximum division available at Q12 is 1/16384 of the oscillator frequency. The ∅I input and the CLEAR input are equipped with protection circuits against static discharge and transient excess voltage.
