OA4ZHA - High precision low-power op amps

General Description

The OA1ZHA, OA2ZHA, OA4ZHA series of lowpower, high-precision op amps offers very low input offset voltages with virtually zero drift.

OA1ZHA, OA2ZHA, OA4ZHA are respectively the single, dual and quad op amp versions, with pinout compatible with industry standards.

Key Features

  • Very high accuracy and stability: offset voltage 5 µV max at 25 °C, 8 µV over full temperature range (-40 °C to 125 °C).
  • Rail-to-rail input and output.
  • Low supply voltage: 1.8 - 5.5 V.
  • Low power consumption: 40 µA max. at 5 V.
  • Gain bandwidth product: 400 kHz.
  • High tolerance to ESD: 4 kV HBM.
  • Extended temperature range: -40 to 125 °C.
  • Micro-packages: SC70-5, DFN8 2x2, and QFN16 3x3 Benefits.
  • High precision operational amplifiers (op amps) with no nee.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
OA47 JEDEC DO-7 PACKAGE ETC

Other Datasheets by STMicroelectronics

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

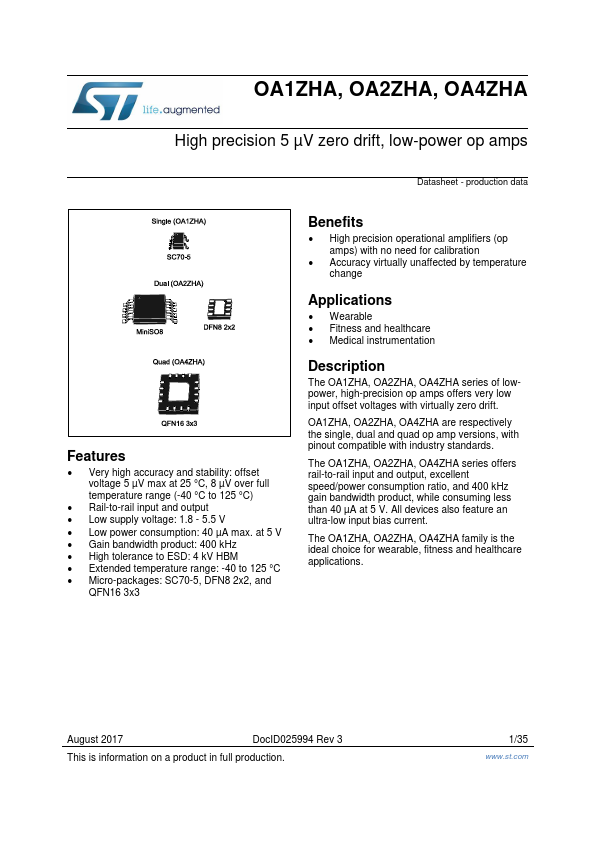

OA1ZHA, OA2ZHA, OA4ZHA High precision 5 µV zero drift, low-power op amps Datasheet - production data Features  Very high accuracy and stability: offset voltage 5 µV max at 25 °C, 8 µV over full temperature range (-40 °C to 125 °C)  Rail-to-rail input and output  Low supply voltage: 1.8 - 5.5 V  Low power consumption: 40 µA max.
