PM6641 - Monolithic VR for chipset and DDR2/3 supply

Datasheet Summary

Description

The PM6641 is a monolithic voltage regulator module specifically designed to supply DDR2/3 memory and chipset in ultra-mobile PC and real estate constrained portable systems.

Features

  • 0.8 V ±1 % internal voltage reference V to 5.5 V input voltage range Fast response, constant frequency, current mode control Three independent, adjustable, out-of-phase SMPS for DDR2/3 (VDDQ) and chipset supply Low noise DDR2/3 reference (VTTREF) ±2 Apk LDO for DDR2/3 termination (VTT) with foldback S0-S5 states compliant DDR2/3 section Active soft-end for all outputs Selectable tracking discharge for VDDQ Separate power-good signals Pulse skipping at light load Programmable current limit.

📥 Download Datasheet

Datasheet preview – PM6641

Datasheet Details

Part number PM6641
Manufacturer STMicroelectronics
File Size 2.28 MB
Description Monolithic VR for chipset and DDR2/3 supply
Datasheet download datasheet PM6641 Datasheet
Additional preview pages of the PM6641 datasheet.

📁 Similar Datasheet

  • PM66 - 51-65 WATT MEDICAL SWITCHING POWER SUPPLIES (Protek Devices)
  • PM6602 - 8-row 30-mA LED driver (ST Microelectronics)
  • PM6670A - Complete DDR2/3 Memory Power Supplies Controller (ST Microelectronics)
  • PM6675A - High Efficiency Step Down Controller (ST Microelectronics)
  • PM6680A - DUAL STEP-DOWN CONTROLLER (ST Microelectronics)
  • PM6681A - DUAL STEP-DOWN CONTROLLER (ST Microelectronics)
  • PM6685 - DUAL STEP-DOWN CONTROLLER (ST Microelectronics)
  • PM600BZ - N-Channel MOSFET (UNIKC)
  • PM600CLA060 - Intelligent Power Module (Mitsubishi)
  • PM600CLA060 - Three Phase IGBT Inverter (Powerex)
Other Datasheets by STMicroelectronics
  • PM6644 - 350mA adjustable step-down regulator
  • PM6600 - 6-rows 30 mA LEDs driver
  • PM6610 - 2 to 4-cell Li-ion Li-FePO4 battery charger
  • PM6652 - Single-phase Switching DC-DC Controllers & Smart Regulators
  • PM6670 - Complete DDR2/3 memory power supply controller
  • PM6680 - No Rsense dual step-down controller
  • PM6686 - Dual step-down controller
  • PM6697 - VR13 single phase controller

Full PDF Text Transcription

Click to expand full text

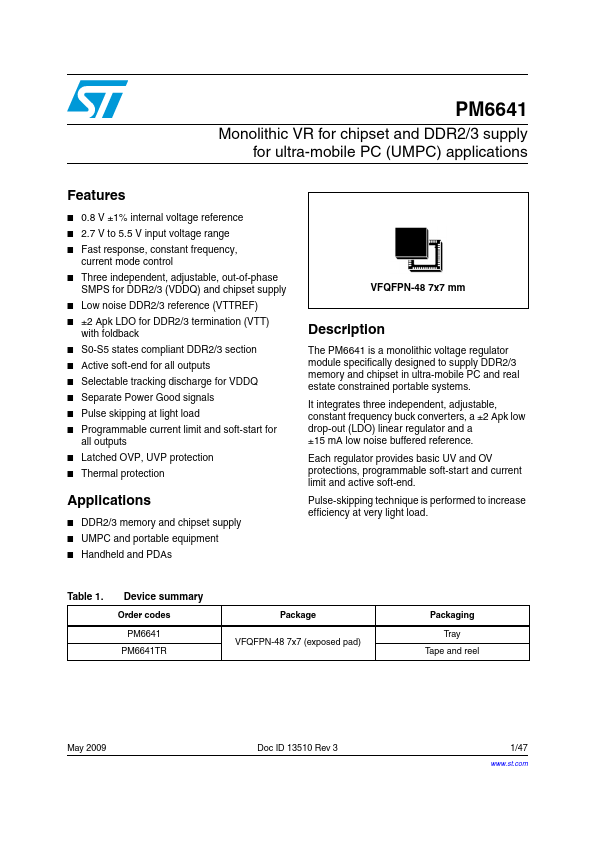

PM6641 Monolithic VR for chipset and DDR2/3 supply for ultra-mobile PC (UMPC) applications Features ■ 0.8 V ±1 % internal voltage reference V to 5.5 V input voltage range Fast response, constant frequency, current mode control Three independent, adjustable, out-of-phase SMPS for DDR2/3 (VDDQ) and chipset supply Low noise DDR2/3 reference (VTTREF) ±2 Apk LDO for DDR2/3 termination (VTT) with foldback S0-S5 states compliant DDR2/3 section Active soft-end for all outputs Selectable tracking discharge for VDDQ Separate power-good signals Pulse skipping at light load Programmable current limit and soft-start for all outputs Latched OVP, UVP protection Thermal protection VFQFPN-48 7x7 www.DataSheet4U.com ■ 2.
