STMicroelectronics S2-LP

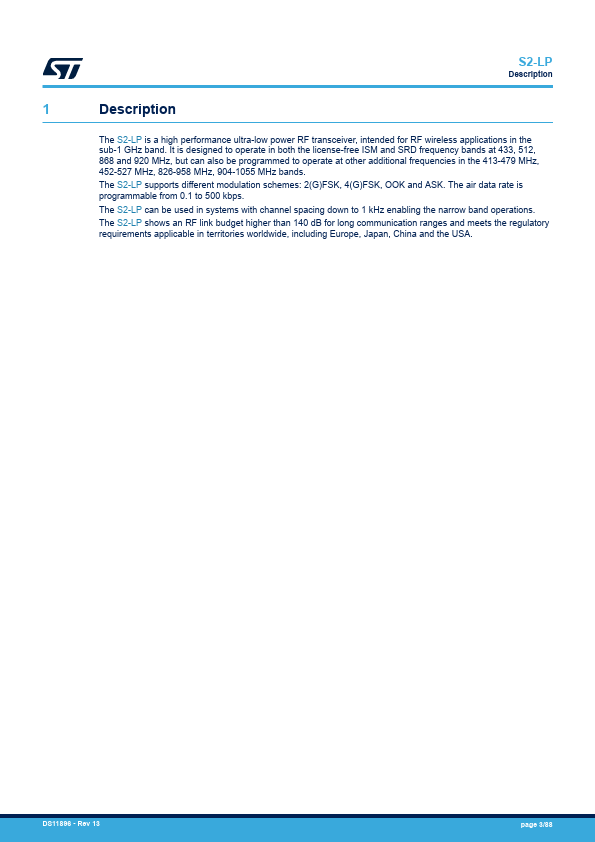

The S2-LP is a high performance ultra-low power RF transceiver, intended for RF wireless applications in the sub-1 GHz band. It is designed to operate in both the license-free ISM and SRD frequency bands at 433, 512, 868 and 920 MHz, but can also be programmed to operate at other additional frequencies in the 413-479 MHz, 452-527 MHz, 826-958 MHz, 904-1055 MHz bands. The S2-LP supports different modulation schemes: 2(G)FSK, 4(G)FSK, OOK and ASK.| Part No. | S2-LP |
|---|---|
| Datasheet | S2-LP Download |
| Manufacturer |  STMicroelectronics |
| Description | sub-1GHz transceiver |
| Buy | Stock & Price |

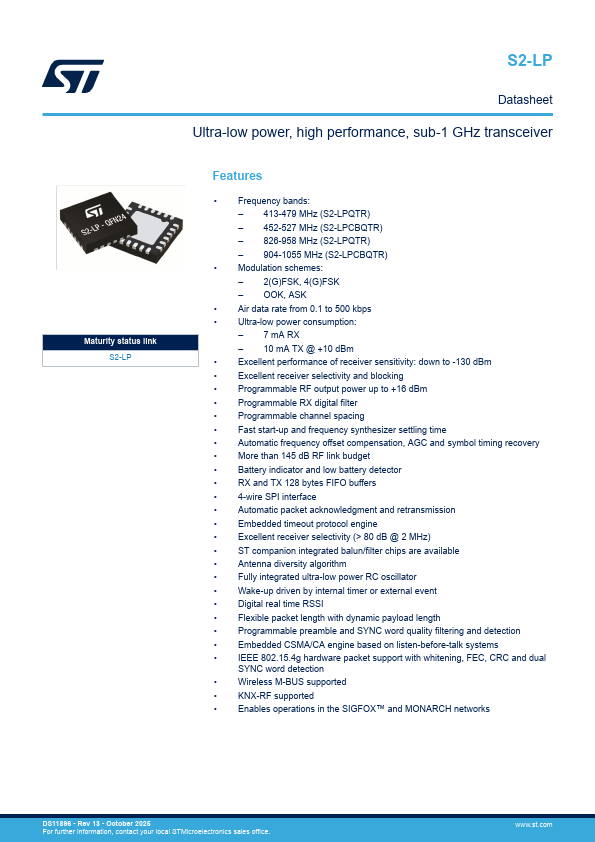

FEATURES
● Frequency bands: – 413-479 MHz (S2-LPQTR) – 452-527 MHz (S2-LPCBQTR) – 826-958 MHz (S2-LPQTR) – 904-1055 MHz (S2-LPCBQTR)● Modulation schemes: – 2(G)FSK, 4(G)FSK – OOK, ASK
● Air data rate from 0.1 to 500 kbps
● Ultra-low power consumption: – 7 mA RX – 10 mA TX @ +10 dBm
● Excellent performance of receiver sensitivity: down to -130 dBm
● Excellent receiver selectivity and blocking
● Programmable RF output power up to +16 dBm
● Programmable RX digital filter
● Programmable channel spacing
● Fast start-up and frequency synthesizer settling time
● Automatic frequency offset compensation, AGC and symbol timing recovery
● More than 145 dB RF link budget
● Battery indicator and low battery detector
● RX and TX 128 bytes FIFO buffers
● 4-wire SPI interface
● Automatic packet acknowledgment and retransmission
● Embedded timeout protocol engine
● Excellent receiver selectivity (> 80 dB @ 2 MHz)
● ST companion integrated balun/filter chips are available
● Antenna diversity algorithm...
