SM6T12CA Datasheet | STMicroelectronics

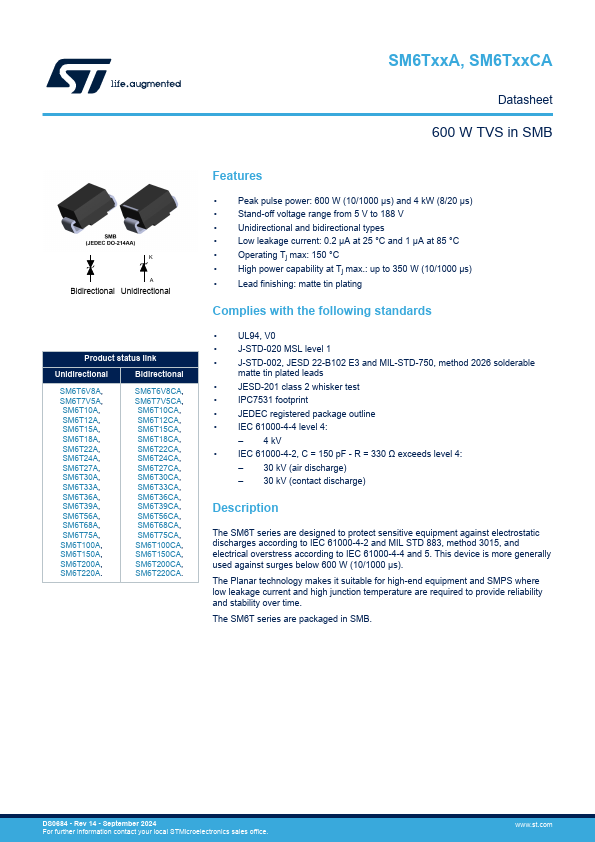

SM6TxxA, SM6TxxCA 600 W TVS in SMB Bidirectional Unidirectional Product status link Unidirectional Bidirectional SM6T6V8A, SM6T7V5A, SM6T10A, SM6T12A, SM6T15A, SM6T18A, SM6T22A, SM6T24A, SM6T27A, SM6T30A, SM6T33A, SM6T36A, SM6T39A, SM6T56A, SM6T68A, SM6T75A, SM6T100A, SM6T150A, SM6T200A, SM6T220A. SM6T6V8CA, SM6T7V5CA, SM6T10CA, SM6T12CA, SM6T15CA, SM6T18CA, SM6T22CA, SM6T24CA, SM6T27CA, SM6T30CA, SM6T33CA, SM6T36CA, SM6T39CA, SM6T56CA, SM6T68CA, SM6T75CA, SM6T100CA, SM6T150CA, SM6T200CA, SM6T220CA. Features - Peak pulse power: 600 W (10/1000 μs) and 4 kW (8/20 μs) - Stand-off voltage range from 5 V to 188 V - Unidirectional and bidirectional types - Low leakage...
