Datasheet Details
| Part number | SM6T150CA |
|---|---|
| Manufacturer | STMicroelectronics |
| File Size | 521.94 KB |
| Description | 600W TVS |
| Datasheet | SM6T150CA SM6T Datasheet (PDF) |
|
|

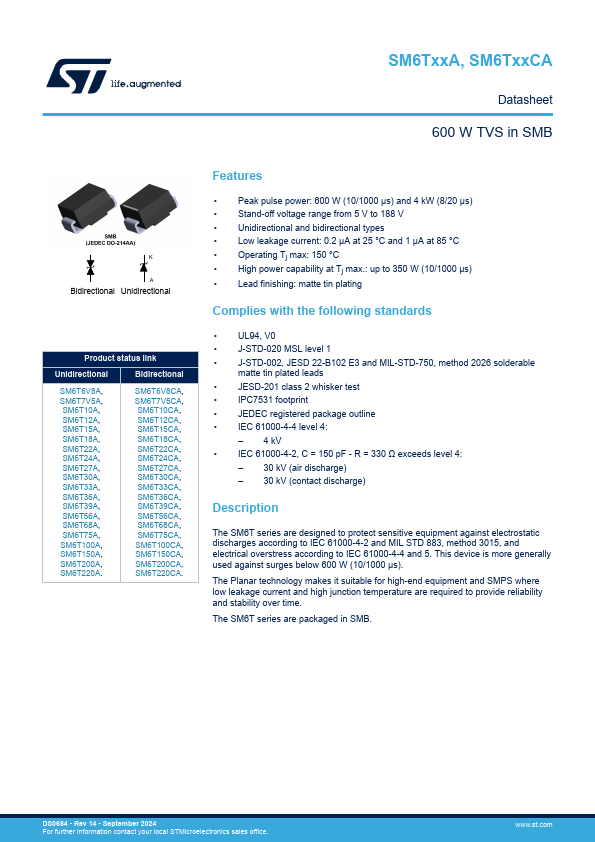

Overview: SM6T Datasheet 600 W TVS in SMB.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | SM6T150CA |
|---|---|
| Manufacturer | STMicroelectronics |
| File Size | 521.94 KB |
| Description | 600W TVS |
| Datasheet | SM6T150CA SM6T Datasheet (PDF) |
|
|
|
The SM6T series are designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2 and MIL STD 883, method 3015, and electrical overstress according to IEC 61000-4-4 and 5.
This device is more generally used against surges below 600 W (10/1000 μs).
The Planar technology makes it suitable for high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.
| Brand Logo | Part Number | Description | Manufacturer |
|---|---|---|---|
 |
SM6T150CA | SURFACE MOUNT TRANSIENT VOLTAGE SUPPESSOR DIODE | SunMate |
|
SM6T150C | SURFACE MOUNT TRANSIENT VOLTAGE SUPPESSOR DIODE | SunMate |
|
SM6T150 | SURFACE MOUNT TRANSIENT VOLTAGE SUPPESSOR DIODE | SunMate |
 |
SM6T150A | TRANSZORB SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR | General Semiconductor |
 |
SM6T150A | Transient Voltage Suppressors | Vishay |
| Part Number | Description |
|---|---|
| SM6T150A | 600W TVS |
| SM6T15A | 600W TVS |
| SM6T15AY | Automotive 600W Transil |
| SM6T15CA | 600W TVS |
| SM6T15CAY | Automotive 600W Transil |
| SM6T100A | 600W TVS |
| SM6T100CA | 600W TVS |
| SM6T10A | 600W TVS |
| SM6T10AY | Automotive 600W Transil |
| SM6T10CA | TRANSIL |
