SM6T7V5A - 600W TVS

This page provides the datasheet information for the SM6T7V5A, a member of the SM6T 600W TVS family.

Datasheet Summary

Description

The SM6T series are designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2 and MIL STD 883, method 3015, and electrical overstress according to IEC 61000-4-4 and 5.

This device is more generally used against surges below 600 W (10/1000 μs).

Features

  • Peak pulse power: 600 W (10/1000 μs) and 4 kW (8/20 μs).
  • Stand-off voltage range from 5 V to 188 V.
  • Unidirectional and bidirectional types.
  • Low leakage current: 0.2 μA at 25 °C and 1 μA at 85 °C.
  • Operating Tj max: 150 °C.
  • High power capability at Tj max. : up to 515 W (10/1000 µs) K.
  • Lead finishing: matte tin plating Bidirectional A Unidirectional Product status link SM6T SM6T6V8A, SM6T6V8CA, SM6T7V5A, SM6T7V5CA, SM6T10A.

📥 Download Datasheet

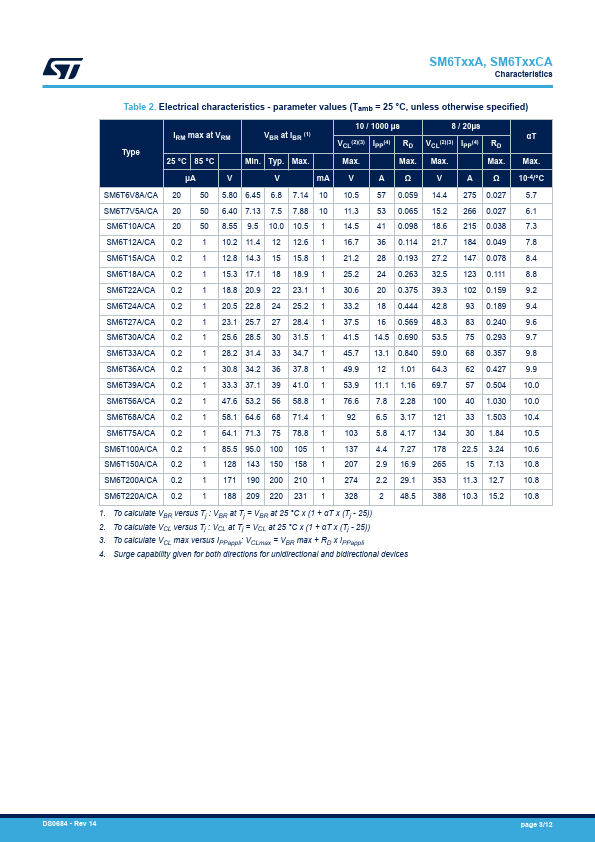

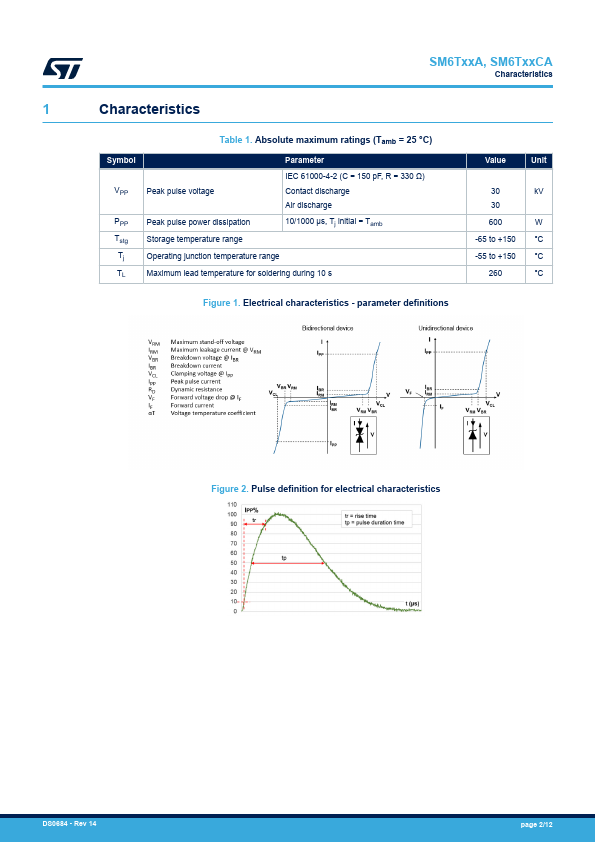

Datasheet preview – SM6T7V5A

📁 Similar Datasheet

  • SM6T7V5A - TRANSZORB SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (General Semiconductor)
  • SM6T7V5A - Transient Voltage Suppressors (Vishay)
  • SM6T7.5 - SURFACE MOUNT TRANSIENT VOLTAGE SUPPESSOR DIODE (SunMate)
  • SM6T7.5A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPESSOR DIODE (SunMate)
  • SM6T7.5C - SURFACE MOUNT TRANSIENT VOLTAGE SUPPESSOR DIODE (SunMate)
  • SM6T7.5CA - SURFACE MOUNT TRANSIENT VOLTAGE SUPPESSOR DIODE (SunMate)
  • SM6T75 - SURFACE MOUNT TRANSIENT VOLTAGE SUPPESSOR DIODE (SunMate)
  • SM6T75A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPESSOR DIODE (SunMate)
  • SM6T75C - SURFACE MOUNT TRANSIENT VOLTAGE SUPPESSOR DIODE (SunMate)
  • SM6T75CA - SURFACE MOUNT TRANSIENT VOLTAGE SUPPESSOR DIODE (SunMate)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
SM6T Datasheet 600 W TVS in SMB Features • Peak pulse power: 600 W (10/1000 μs) and 4 kW (8/20 μs) • Stand-off voltage range from 5 V to 188 V • Unidirectional and bidirectional types • Low leakage current: 0.2 μA at 25 °C and 1 μA at 85 °C • Operating Tj max: 150 °C • High power capability at Tj max.
