STMicroelectronics SMBJ5.0A
The SMBJ series is designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2 and MIL STD 883, method 3015, and electrical overstress according to IEC 61000-4-4 and 5, induced by inductive load switching, lighting and other transient voltage events on ICs, MOSFETs, signal lines. This device is more generally used against surges below 600 W (10/1000 μs). The Planar technology makes it suitable for high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.| Part No. | SMBJ5.0A |
|---|---|
| Datasheet | SMBJ5.0A Download |
| Manufacturer |  STMicroelectronics |
| Description | 600W TVS |
| Buy | Stock & Price |

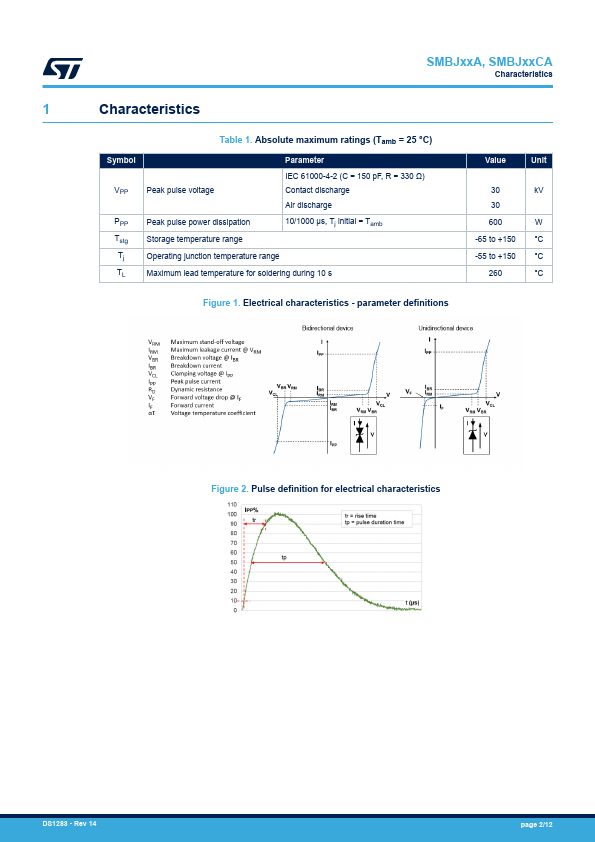

FEATURES
● Peak pulse power: 600 W (10/1000 μs) and 4 kW (8/20 μs)● Typical failure mode is short from over-specified voltage or current
● Stand-off voltage range from 5 V to 188 V
● Unidirectional and bidirectional types
● Low leakage current: 0.2 μA at 25 °C and 1 μA at 85 °C
● Operating Tj max: 150 °C
● High power capability at Tj max.: up to 350 W (10/1000 µs)
● Excellent clamping capability
● Very fast response time
● Lead finishing: matte tin plating Complies with the following standards
● Recognized to UL497B as an isolated loop circuit protector – Agency file number: E136224
● UL94, V0
● J-STD-020 MSL level 1
● J-STD-002, JESD 22-B102 E3 and MIL-STD-750, method 2026 solderable matte tin plated leads
● JESD-201 class 2 whisker test
● IPC7531 footprint
● JEDEC registered package outline
● IEC 61000-4-4 level 4: – 4 kV
● IEC 61000-4-2, C = 150 pF - R = 330 Ω exceeds level 4: – 30 kV (air discharge) – 30 kV (contact discharge)
DESCRIPTION
The SMBJ series is packaged in SMB. DS1283 - Rev 14 - April 2026 For further information, contact your local STMicroelectronics sales office.
