STMicroelectronics SMC50J100A
The SMC50J TVS series are designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2, MIL STD 883 Method 3015, and electrical overstress such as IEC 61000-4-4 and 5. They are used for surges below 5000 W 10/1000 μs. This planar technology makes it compatible with high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.| Part No. | SMC50J100A |
|---|---|
| Datasheet | SMC50J100A Download |
| Manufacturer |  STMicroelectronics |
| Description | 5000W TVS |
| Buy | Stock & Price |
FEATURES
● Peak pulse power: – 5000 W (10/1000 μs) – up to 48 kW (8/20 μs)● Stand-off voltage range from 5 V to 100 V
● Unidirectional and bidirectional types
● Low leakage current: 0.2 µA at 25 °C
● Operating Tj max: 175 °C
● JEDEC registered package outline
● Lead finishing: matte tin plating Complies with the following standards
● UL94, V0
● J-STD-020 MSL level 1
● J-STD-002, JESD 22-B102 E3 and MIL-STD-750, method 2026
● JESD-201 class 2 whisker test
● IPC7531 footprint and JEDEC registered package outline
● IEC 61000-4-4 level 4: – 4kV
● IEC 61000-4-2, C = 150 pF, R = 330 Ω exceeds level 4: – 30 kV (air discharge) – 30 kV (contact discharge)
DESCRIPTION

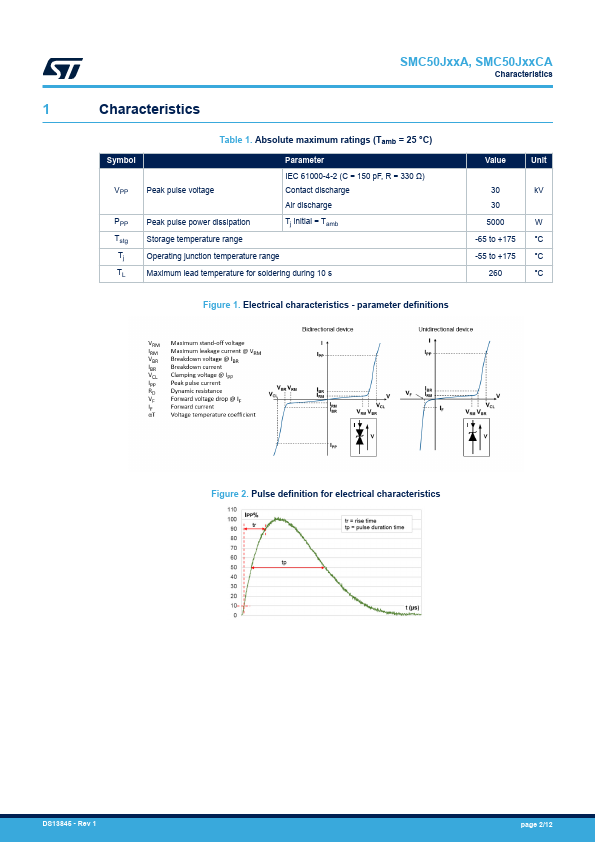

They are used for surges below 5000 W 10/1000 μs. DS13845 - Rev 1 - July 2023 For further information contact your local STMicroelectronics sales office. SMC50JxxA, SMC50JxxCA Characteristics 1 Characteristics Table 1. Absolute maximum ratings (Tamb = 25 °C) Symbol VPP PPP Tstg Tj TL Parameter Peak pulse voltage Peak pulse power d...
