STMicroelectronics STGAP2HSA
The STGAP2HSA is a single gate driver which provides galvanic isolation between the gate driving channel and the low voltage control and interface circuitry. The gate driver is characterized by 4 A capability and rail-to-rail outputs, making the device also suitable for mid and high power applications such as power conversion and motor driver inverters in industrial applications. The device has a single output pin and Miller CLAMP function that prevents gate spikes during fast commutations in half-bridge topologies.| Part No. | STGAP2HSA |
|---|---|
| Datasheet | STGAP2HSA Download |
| Manufacturer |  STMicroelectronics |
| Description | Automotive grade galvanically isolated 4A single gate driver |
| Buy | Stock & Price |

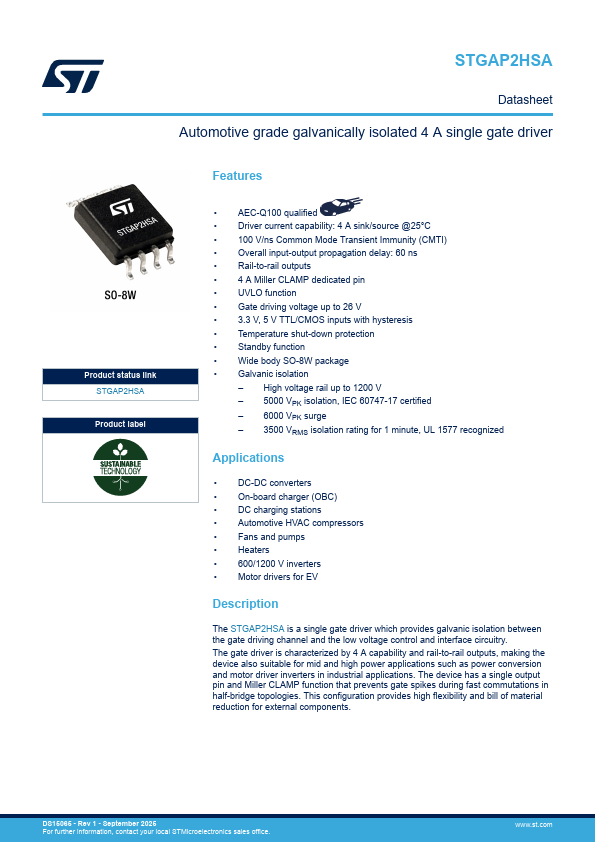

FEATURES
● AEC-Q100 qualified● Driver current capability: 4 A sink/source @25°C
● 100 V/ns Common Mode Transient Immunity (CMTI)
● Overall input-output propagation delay: 60 ns
● Rail-to-rail outputs
● 4 A Miller CLAMP dedicated pin
● UVLO function
● Gate driving voltage up to 26 V
● 3.3 V, 5 V TTL/CMOS inputs with hysteresis
● Temperature shut-down protection
● Standby function
● Wide body SO-8W package
● Galvanic isolation – High voltage rail up to 1200 V – 5000 VPK isolation, IEC 60747-17 certified – 6000 VPK surge – 3500 VRMS isolation rating for 1 minute, UL 1577 recognized
APPLICATIONS
● DC-DC converters● On-board charger (OBC)
● DC charging stations
● Automotive HVAC compressors
● Fans and pumps
● Heaters
● 600/1200 V inverters
● Motor drivers for EV

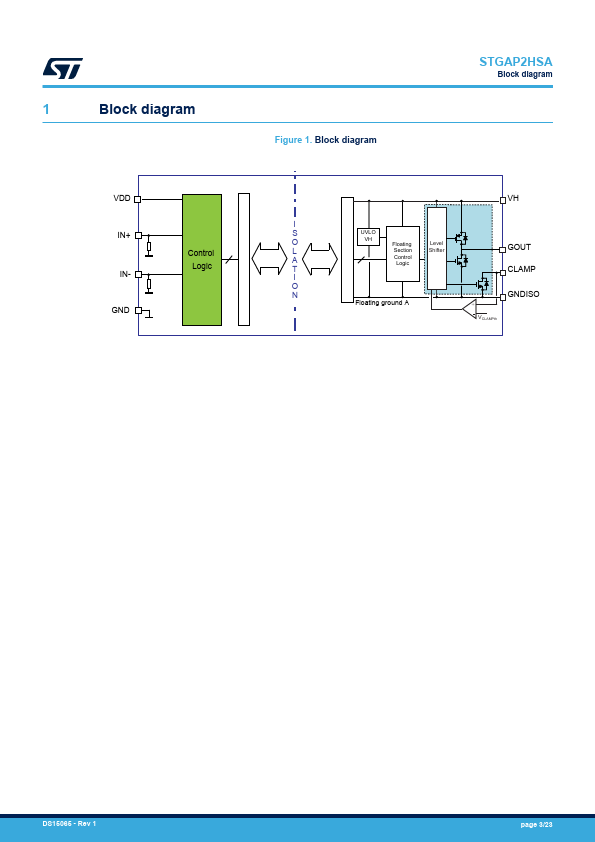

DESCRIPTION

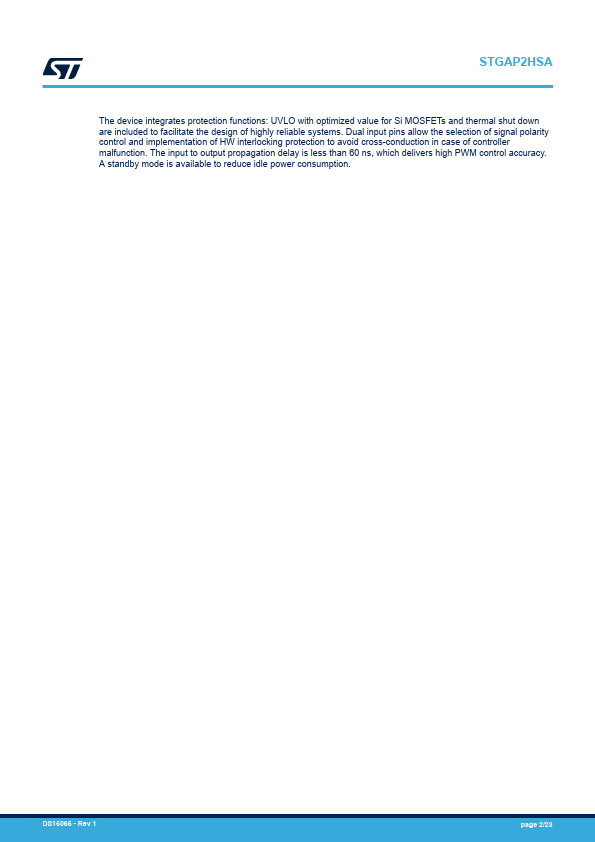

This configuration provides high flexibility and bill of material reduction for external components. DS15065 - Rev 1 - September 2025 For further information, contact your local STMicroelectronics sales office. STGAP2H...
