STM32F217ZE - 32-bit MCU

Product Overview

STMicroelectronics

Part number	STM32F217ZE
Manufacturer	STMicroelectronics
File Size	1.65 MB
Description	32-bit MCU
Datasheet	STM32F217ZE Datasheet
Note	This datasheet PDF includes multiple part numbers: STM32F217ZE, STM32F215RG. Please refer to the document for exact specifications by model.

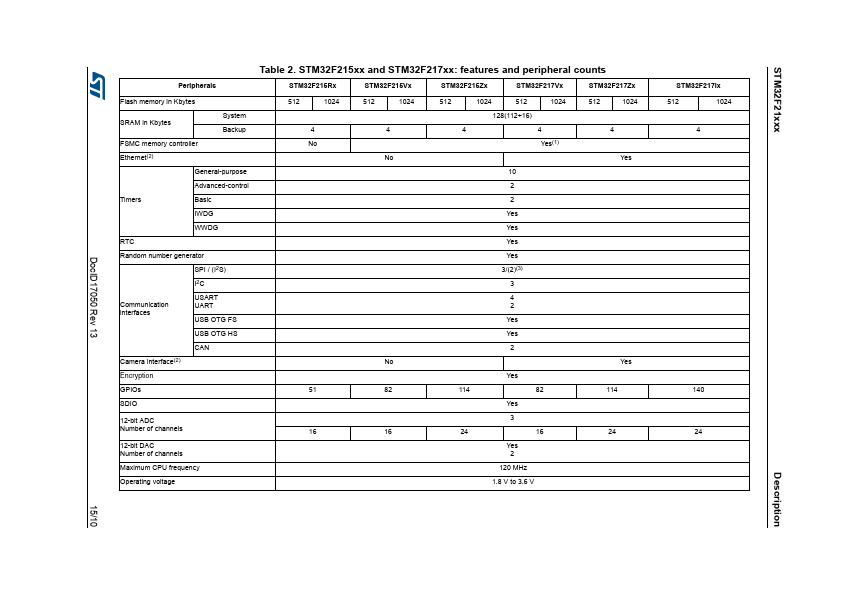

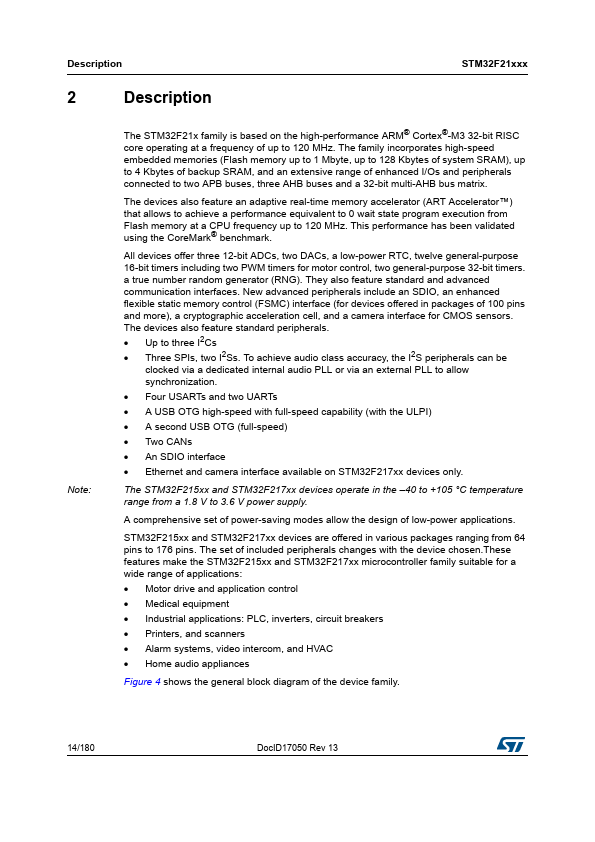

Additional preview pages of the STM32F217ZE datasheet.

Core: ARM® 32-bit Cortex®-M3 CPU (120 MHz max) with Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution performance from Flash memory, MPU, 150 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1).
Memories.
Up to 1 Mbyte of Flash memory.
512 bytes of OTP memory.
Up to 128 + 4 Kbytes of SRAM.
Flexible static memory controller that supports Compact Flash, SRAM, PSRAM, NOR and NAND memories.
LCD parallel interface, 8080/.
