STMicroelectronics STM32F429AI

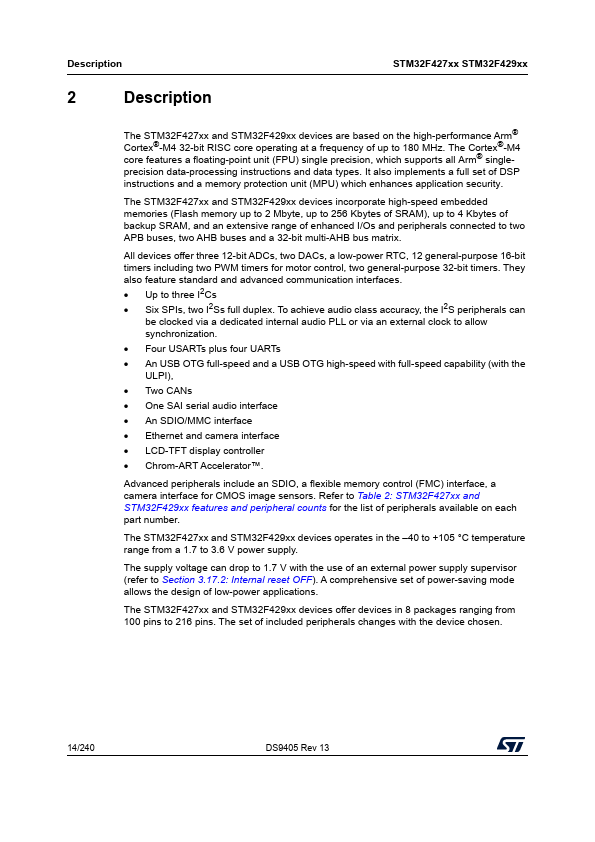

The STM32F427xx and STM32F429xx devices are based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 180 MHz. The Cortex®-M4 core features a floating-point unit (FPU) single precision, which supports all Arm® singleprecision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.| Part No. | STM32F429AI |
|---|---|
| Datasheet | STM32F429AI Download |
| Manufacturer |  STMicroelectronics |
| Description | ARM Cortex-M4 32-bit MCU+FPU |
| Buy | Stock & Price |
FEATURES
● Includes ST state-of-the-art patented technology.● Core: Arm® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from flash memory, frequency up to 180 MHz, MPU, 225 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
● Memories – 512 bytes of OTP memory – Up to 2 MB of flash memory organized into two banks allowing read-while-write – Up to 256+4 KB of SRAM including 64 KB of CCM (core coupled memory) data RAM – Flexible external memory controller with up to 32-bit data bus: SRAM, PSRAM, SDRAM/LPSDR SDRAM, compact flash/NOR/NAND memories
● LCD parallel interface, 8080/6800 modes
● LCD-TFT controller with fully programmable resolution (total width up to 4096 pixels, total height up to 2048 lines and pixel clock up to 83 MHz)
● Chrom-ART Accelerator™ for enhanced graphic content creation (DMA2D)
● Clock, reset, and supply management – 1.7 V to 3.6 V application supply and I/Os – POR, PDR, PVD, and BOR – 4-t...
