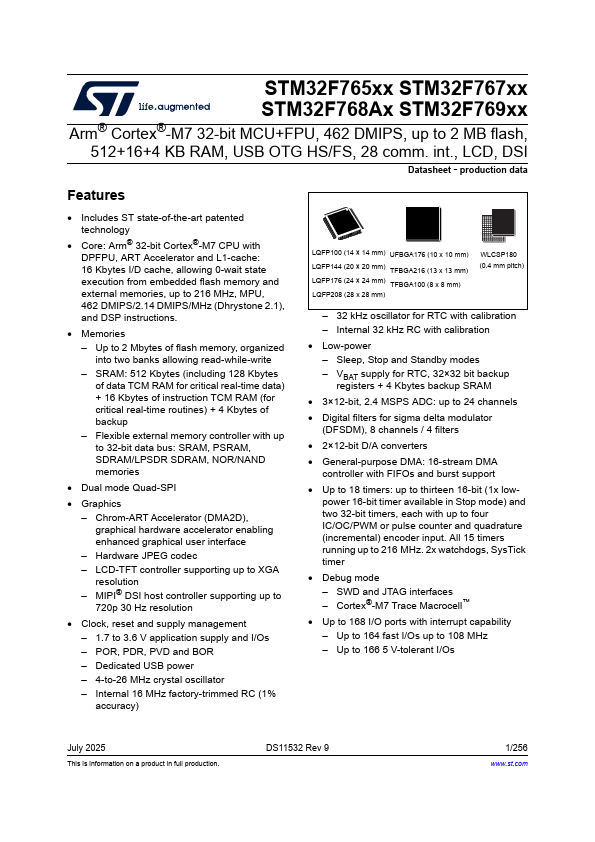

STM32F765xx STM32F767xx STM32F768Ax STM32F769xx Arm® Cortex®-M7 32-bit MCU+FPU, 462 DMIPS, up to 2 MB flash, 512+16+4 KB RAM, USB OTG HS/FS, 28 m. int., LCD, DSI - production data Features - Includes ST state-of-the-art patented technology - Core: Arm® 32-bit Cortex®-M7 CPU with DPFPU, ART Accelerator and L1-cache: 16 Kbytes I/D cache, allowing 0-wait state execution from embedded flash memory and external memories, up to 216 MHz, MPU, 462 DMIPS/2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions. - Memories - Up to 2 Mbytes of flash memory, organized into two banks allowing read-while-write - SRAM: 512 Kbytes (including 128 Kbytes of data TCM RAM for critical real-time data) + 16 Kbytes of instruction TCM RAM (for critical real-time routines) + 4 Kbytes of backup - Flexible external memory controller with up to 32-bit data bus: SRAM, PSRAM, SDRAM/LPSDR SDRAM, NOR/NAND memories - Dual mode Quad-SPI - Graphics - Chrom-ART Accelerator (DMA2D), graphical hardware accelerator enabling enhanced graphical user interface - Hardware JPEG codec - LCD-TFT controller supporting up to XGA resolution - MIPI® DSI host controller supporting up to 720p 30 Hz resolution - Clock, reset and supply management - 1.7 to 3.6 V application supply and I/Os - POR, PDR, PVD and BOR - Dedicated USB power - 4-to-26 MHz crystal oscillator - Internal 16 MHz factory-trimmed RC (1% accuracy) LQFP100 (14 × 14 mm) UFBGA176 (10 x 10 mm) LQFP144 (20 × 20 mm) TFBGA216 (13 x 13 mm) LQFP176 (24 × 24 mm) TFBGA100 (8 x 8 mm) LQFP208 (28 x 28 mm) WLCSP180 (0.4 mm pitch) - 32 k Hz oscillator for RTC with calibration - Internal 32 k Hz RC with calibration - Low-power - Sleep, Stop and Standby modes - VBAT supply for RTC, 32×32 bit backup registers + 4 Kbytes backup...
