STM32F765ZI Datasheet 32-bit MCU+FPU

Manufacturer: STMicroelectronics

Download the STM32F765ZI datasheet PDF. This datasheet also includes the STM32F765BI variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (STM32F765BI-STMicroelectronics.pdf) that lists specifications for multiple related part numbers.

Overview

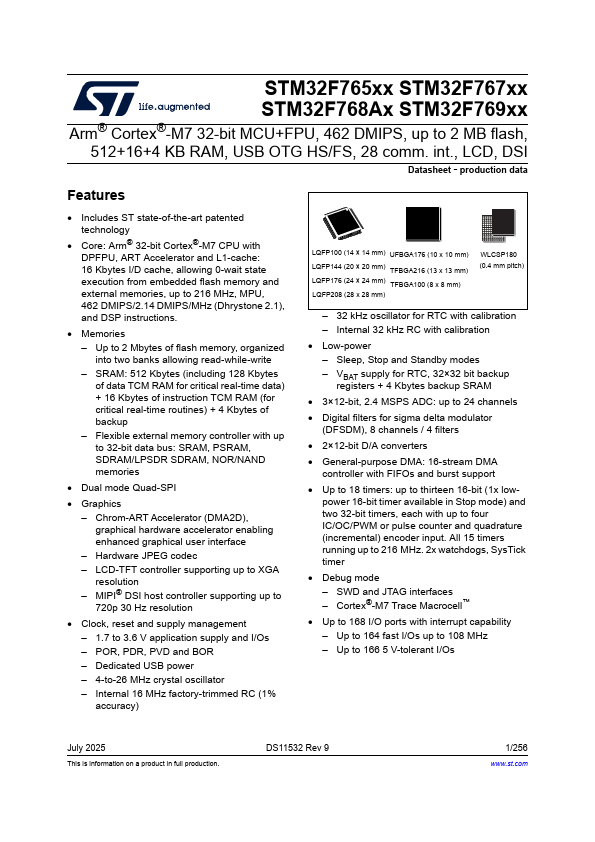

STM32F765xx STM32F767xx STM32F768Ax STM32F769xx Arm® Cortex®-M7 32-bit MCU+FPU, 462 DMIPS, up to 2 MB flash, 512+16+4 KB RAM, USB OTG HS/FS, 28 comm.

int.

Key Features

  • Includes ST state-of-the-art patented technology.
  • Core: Arm® 32-bit Cortex®-M7 CPU with DPFPU, ART Accelerator and L1-cache: 16 Kbytes I/D cache, allowing 0-wait state execution from embedded flash memory and external memories, up to 216 MHz, MPU, 462 DMIPS/2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions.
  • Memories.
  • Up to 2 Mbytes of flash memory, organized into two banks allowing read-while-write.
  • SRAM: 512 Kbytes (including 128 Kbytes of data.
