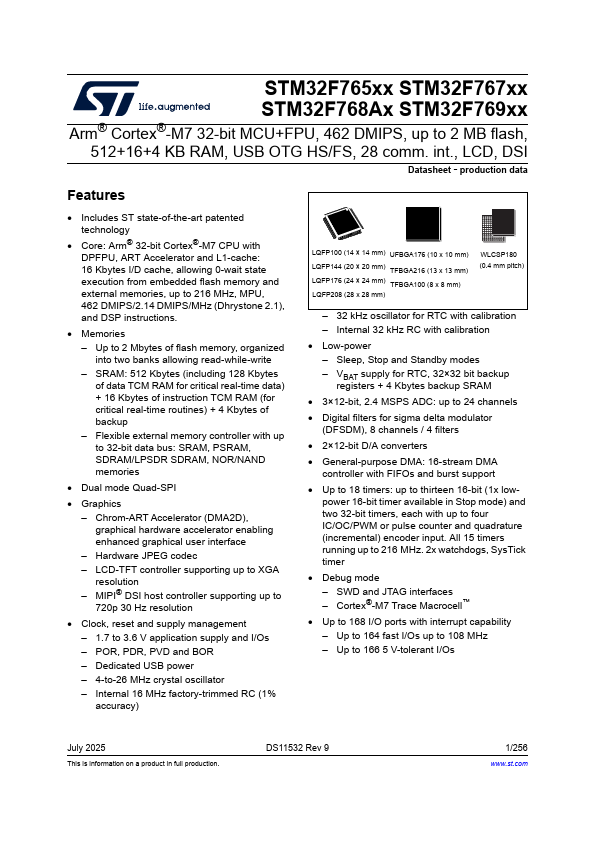

STM32F767BG Overview
Key Specifications
Package: LFQFP
Pins: 208
Operating Voltage: 3 V
Max Voltage (typical range): 3.6 V
Key Features
- Includes ST state-of-the-art patented technology
- Dual mode Quad-SPI
- Low-power – Sleep, Stop and Standby modes – VBAT supply for RTC, 32×32 bit backup registers + 4 Kbytes backup SRAM
- 3×12-bit, 2.4 MSPS ADC: up to 24 channels
- Digital filters for sigma delta modulator (DFSDM), 8 channels / 4 filters
