STM32F769AG - 32-bit MCU+FPU

Product Overview

STMicroelectronics

Part number	STM32F769AG
Manufacturer	STMicroelectronics
File Size	3.41 MB
Description	32-bit MCU+FPU
Datasheet	STM32F769AG Datasheet
Note	This datasheet PDF includes multiple part numbers: STM32F769AG, STM32F765BI. Please refer to the document for exact specifications by model.
Additional preview pages of the STM32F769AG datasheet.

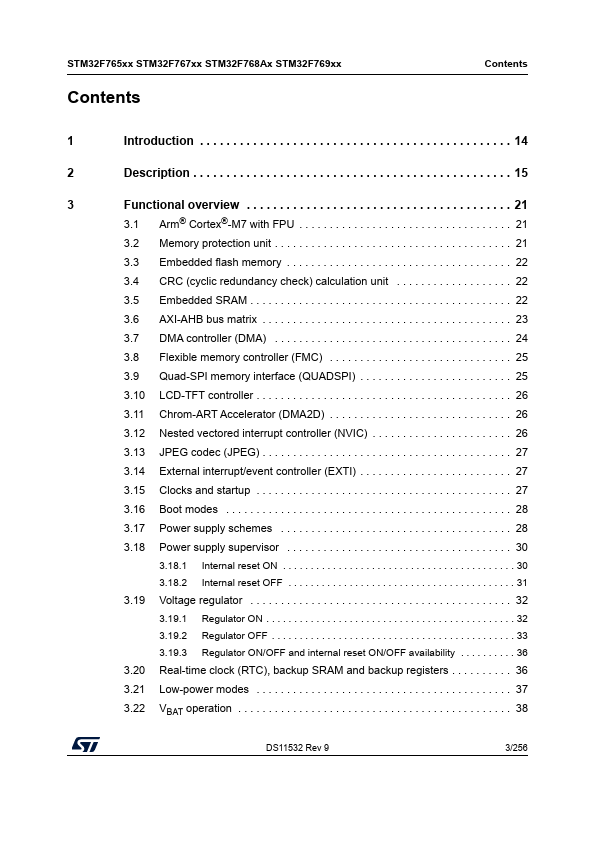

. 21 3.1 Arm® Cortex®-M7 with FPU 21 3.2 Memory protection unit . .

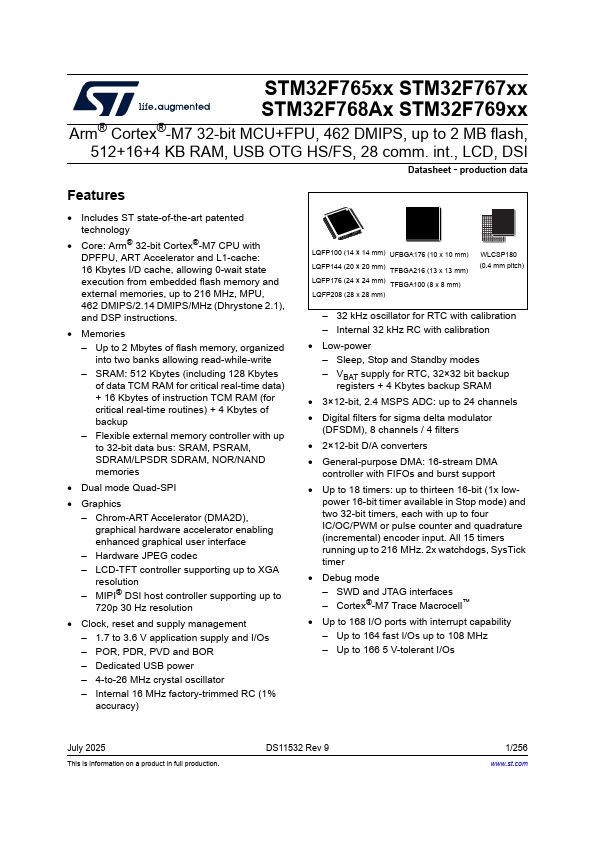

Includes ST state-of-the-art patented technology.
Core: Arm® 32-bit Cortex®-M7 CPU with DPFPU, ART Accelerator and L1-cache: 16 Kbytes I/D cache, allowing 0-wait state execution from embedded flash and external memories, up to 216 MHz, MPU, 462 DMIPS/2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions.
Memories.
Up to 2 Mbytes of flash, organized into two banks allowing read-while-write.
SRAM: 512 Kbytes (including 128 Kbytes of data TCM RAM for cr.
