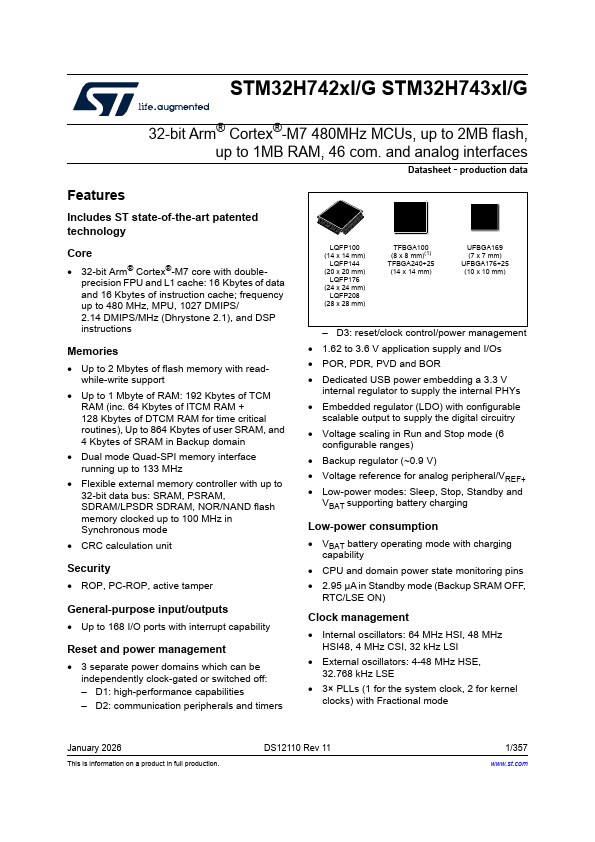

STM32H743II Description
and analog interfaces Datasheet - production data.
STM32H743II Key Features
- Up to 2 Mbytes of flash memory with readwhile-write support
- Up to 1 Mbyte of RAM: 192 Kbytes of TCM RAM (inc. 64 Kbytes of ITCM RAM + 128 Kbytes of DTCM RAM for time critical routi
- Dual mode Quad-SPI memory interface running up to 133 MHz
- Flexible external memory controller with up to 32-bit data bus: SRAM, PSRAM, SDRAM/LPSDR SDRAM, NOR/NAND flash memory cl
- CRC calculation unit
- ROP, PC-ROP, active tamper
- Up to 168 I/O ports with interrupt capability
- 3 separate power domains which can be independently clock-gated or switched off
- D1: high-performance capabilities
- D2: munication peripherals and timers
