STM32H747IG - Dual 32-bit MCUs

Product Overview

STMicroelectronics

Part number	STM32H747IG
Manufacturer	STMicroelectronics
File Size	5.09 MB
Description	Dual 32-bit MCUs
Datasheet	STM32H747IG Datasheet
Note	This datasheet PDF includes multiple part numbers: STM32H747IG, STM32H747AI. Please refer to the document for exact specifications by model.

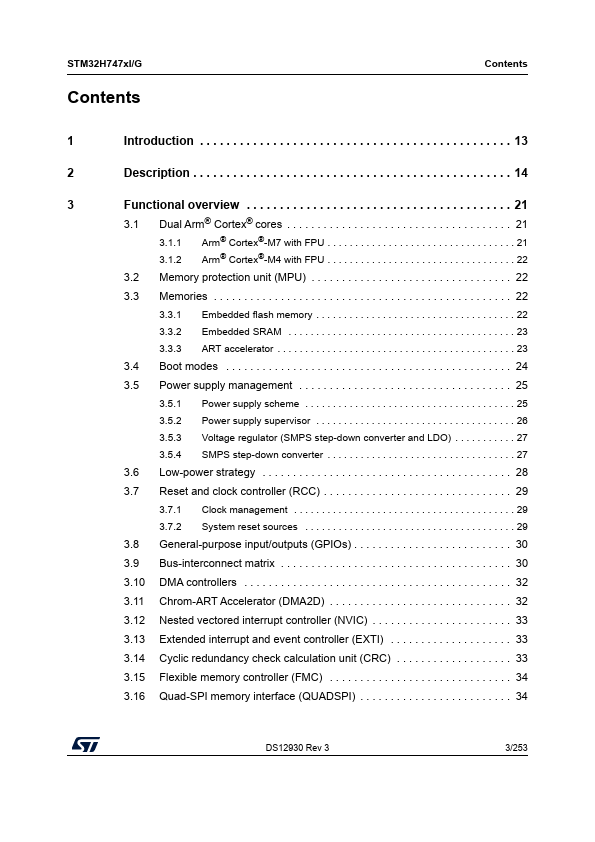

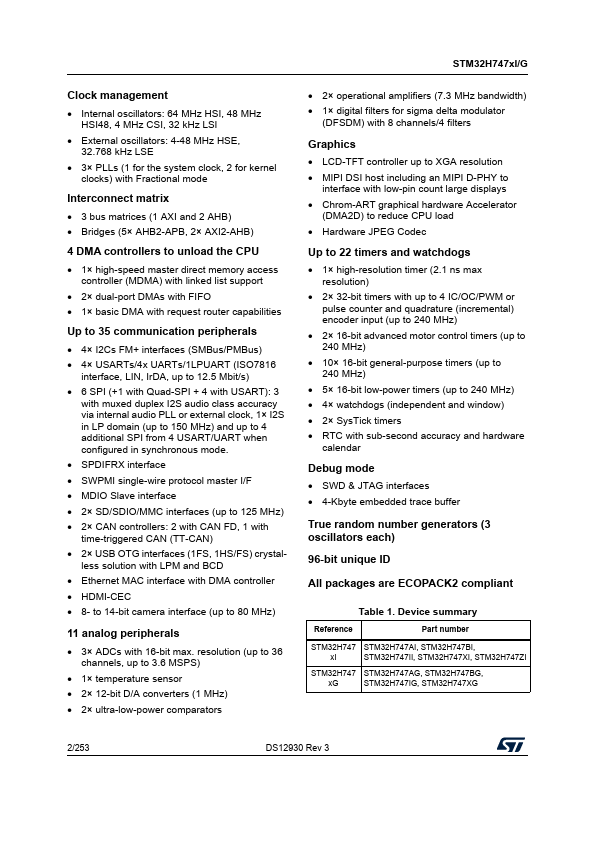

Additional preview pages of the STM32H747IG datasheet.

Includes ST state-of-the-art patented technology Dual core.
32-bit Arm® Cortex®-M7 core with doubleprecision FPU and L1 cache: 16 Kbytes of data and 16 Kbytes of instruction cache; frequency up to 480 MHz, MPU, 1027 DMIPS/ 2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions.
32-bit Arm® 32-bit Cortex®-M4 core with FPU, Adaptive real-time accelerator (ART Accelerator) for internal flash memory and external memories, frequency up to 240 MHz, MPU, 300 DMIPS/1.25 DMIPS /MHz (Dhrys.
