STMicroelectronics STM32H753AI
32-bit Arm Cortex-M7 480MHz MCUs
| Part No. | STM32H753AI |
|---|---|
| Datasheet | STM32H753AI Download |
| Manufacturer |  STMicroelectronics |
| Description | 32-bit Arm Cortex-M7 480MHz MCUs |
| Buy | Stock & Price |

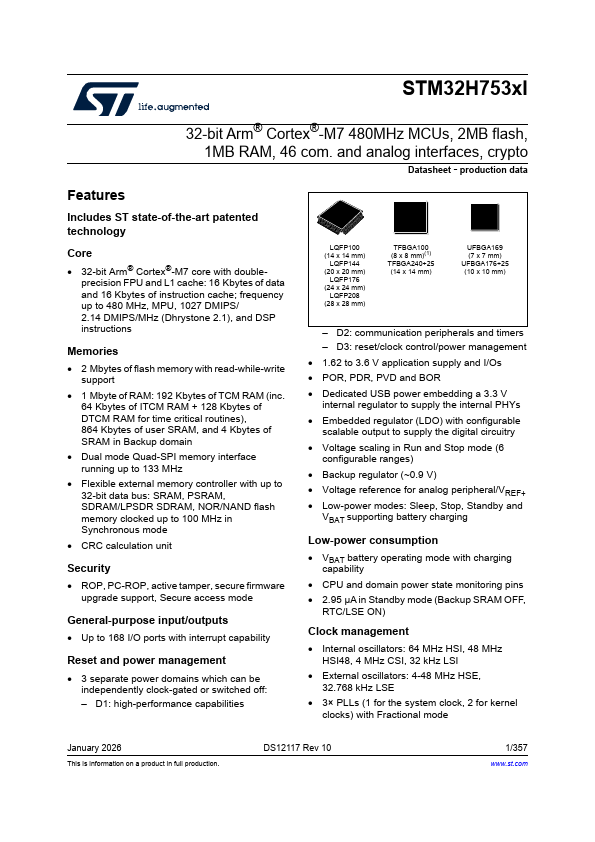

FEATURES
Includes ST state-of-the-art patented technology Core● 32-bit Arm® Cortex®-M7 core with doubleprecision FPU and L1 cache: 16 Kbytes of data and 16 Kbytes of instruction cache; frequency up to 480 MHz, MPU, 1027 DMIPS/ 2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions Memories
● 2 Mbytes of flash memory with read-while-write support
● 1 Mbyte of RAM: 192 Kbytes of TCM RAM (inc. 64 Kbytes of ITCM RAM + 128 Kbytes of DTCM RAM for time critical routines), 864 Kbytes of user SRAM, and 4 Kbytes of SRAM in Backup domain
● Dual mode Quad-SPI memory interface running up to 133 MHz
● Flexible external memory controller with up to 32-bit data bus: SRAM, PSRAM, SDRAM/LPSDR SDRAM, NOR/NAND flash memory clocked up to 100 MHz in Synchronous mode
● CRC calculation unit Security
● ROP, PC-ROP, active tamper, secure firmware upgrade support, Secure access mode General-purpose input/outputs
● Up to 168 I/O ports with interrupt capability Reset and power management
● 3 separate power domains...
