STMicroelectronics STM32L4S5ZI

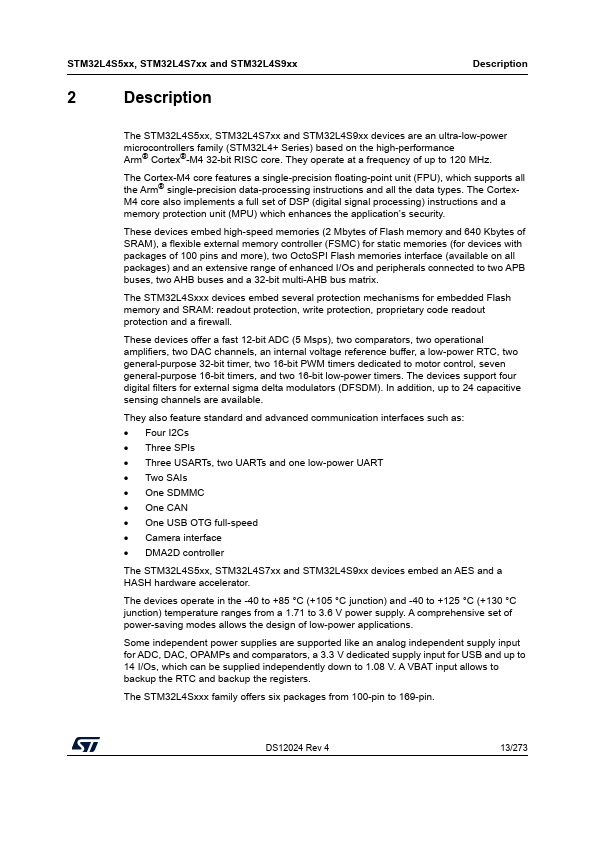

The STM32L4S5xx, STM32L4S7xx and STM32L4S9xx devices are an ultra-low-power microcontrollers family (STM32L4+ Series) based on the high-performance Arm® Cortex®-M4 32-bit RISC core. They operate at a frequency of up to 120 MHz. The Cortex-M4 core features a single-precision floating-point unit (FPU), which supports all the Arm® single-precision data-processing instructions and all the data types.| Part No. | STM32L4S5ZI |
|---|---|
| Datasheet | STM32L4S5ZI Download |
| Manufacturer |  STMicroelectronics |
| Description | Ultra-low-power Arm Cortex-M4 32-bit MCU+FPU |
| Buy | Stock & Price |
FEATURES
● Ultra-low-power with FlexPowerControl – 1.71 V to 3.6 V power supply – -40 °C to 85/125 °C temperature range – Batch acquisition mode (BAM) – 305 nA in VBAT mode: supply for RTC and 32x32-bit backup registers – 33 nA Shutdown mode (5 wakeup pins) – 125 nA Standby mode (5 wakeup pins) – 420 nA Standby mode with RTC – 2.8 μA Stop 2 with RTC – 110 μA/MHz Run mode – 5 µs wakeup from Stop mode – Brownout reset (BOR) in all modes except Shutdown – Interconnect matrix● Core: Arm® 32-bit Cortex®-M4 CPU with FPU, adaptive real-time accelerator (ART Accelerator) allowing 0-wait-state execution from Flash memory, frequency up to 120 MHz, MPU, 150 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
● Performance benchmark – 1.25 DMIPS/MHz (Drystone 2.1) – 409.20 CoreMark® (3.41 CoreMark/MHz @120 MHz)
● Energy benchmark – 233 ULPMark™CP score – 56.5 ULPMark™PP score
● Clock sources – 4 to 48 MHz crystal oscillator – 32 kHz crystal oscillator for RTC (LSE) – Internal 16 MHz factor...
