STMicroelectronics STU16NB50

The new patent pending strip layout coupled with the Company’s proprietary edge termination structure, gives the lowest RDS(on) per area, exceptional avalanche and dv/dt capabilities and unrivalled gate charge and switching characteristics.

Part No.	STU16NB50
Datasheet	STU16NB50 Download
Manufacturer	STMicroelectronics
Description	N-Channel 500V 15.6A MOSFET
Buy	Stock & Price

DESCRIPTION

Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances.

APPLICATIONS

s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE 23 1 Max220 INTERNAL SCHEMATIC DIAGRAM

ABSOLUTE MAXIMUM RATINGS

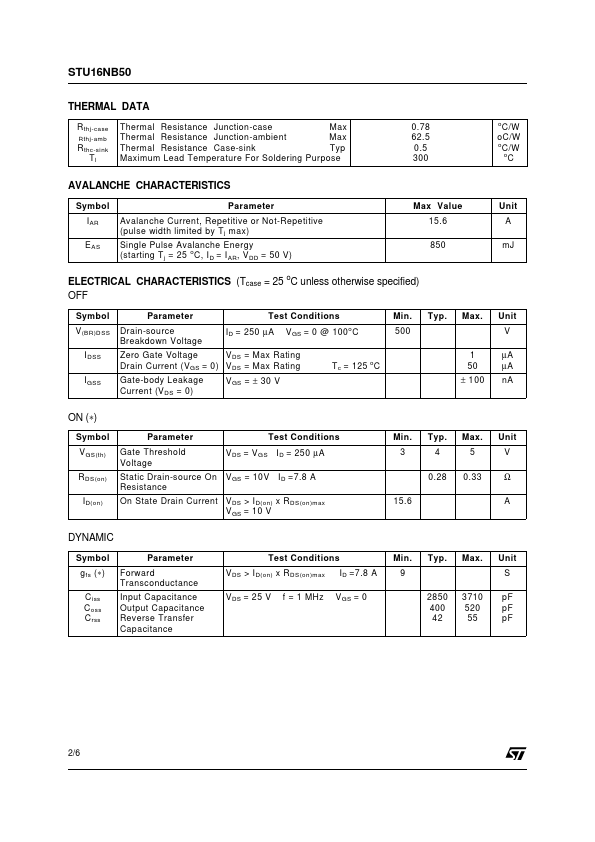

Symbol Parameter Value Unit VDS VDGR VGS ID ID IDM(●) Ptot Drain-source Voltage (VGS = 0) Drain- gate Voltage (RGS = 20 kΩ) Gate-source Voltage Drain Current (continuous) at Tc = 25 oC Drain Current (continuous) at Tc = 100 oC Drain Current (pulsed) Total Dissipation at Tc = 25 oC Derating Factor 500 500 ± 30 15.6 9.8 62 160 1.28 V V V A A A W W/oC dv/dt(1) Peak Diode Recovery voltage slope Tstg Storage Temperature Tj Max. Operating Junction Temperature (●) Pulse width limited by safe operating area 4.5 -65 to 150 150 (1) ISD ≤16A, di/dt ≤ 200 A/µs, VDD ≤ V(BR)DSS, Tj ≤ TJMAX V/ns oC oC September 1999 1/6 This is preliminary information on a new product now in development or undergoing evaluation.
