T1610-800G - logic level and standard 16A Triacs

This page provides the datasheet information for the T1610-800G, a member of the T1610 logic level and standard 16A Triacs family.

Product Overview

STMicroelectronics

📥 Download Datasheet

Datasheet Details

Part number	T1610-800G
Manufacturer	STMicroelectronics
File Size	203.93 KB
Description	logic level and standard 16A Triacs
Datasheet	T1610-800G Datasheet
Additional preview pages of the T1610-800G datasheet.

T1610-800G Product details

Description

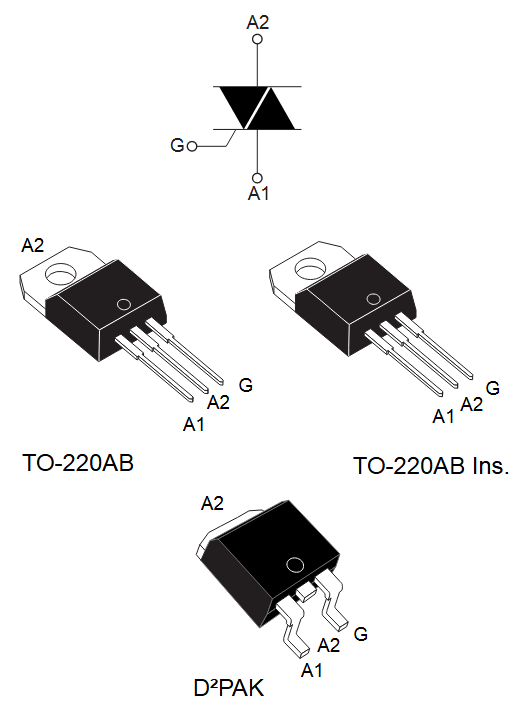

Available either in through-hole or surface mount packages, the BTA16, BTB16 and T1610, T1635 and T1650 Triac series are suitable for general purpose mains power AC switching.

Features

Medium current Triac.
Low thermal resistance with clip bonding.
Low thermal resistance insulation ceramic for insulated BTA.
High commutation (4Q) or very high commutation (3Q, Snubberless™) capability.
BTA series UL1557 certified (file ref: 81734).
Packages are RoHS (2002/95/EC) compliant.
Insulated tab (BTA series, rated at 2500 VRMS).
