T1650-600G Overview

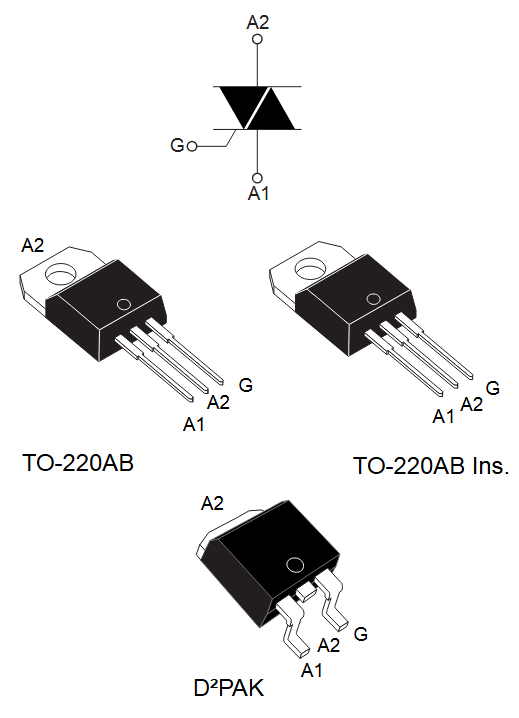

Available either in through-hole or surface mount packages, the BTA16, BTB16 and T1610, T1635 and T1650 Triac series are suitable for general purpose mains power AC switching. They can be used as ON/OFF function in applications such as static relays, heating regulation or induction motor starting circuit. They are also remended for phase control operations in light dimmers and appliance motors speed controllers.
T1650-600G Key Features
- Medium current Triac
- Low thermal resistance with clip bonding
- Low thermal resistance insulation ceramic for insulated BTA
- High mutation (4Q) or very high mutation (3Q, Snubberless™)
- BTA series UL1557 certified (file ref: 81734)
- Packages are RoHS (2002/95/EC) pliant
- Insulated tab (BTA series, rated at 2500 VRMS)
T1650-600G Applications
- Snubberless versions (BTA/BTB...W and T1635) especially remended for use on inductive loads, because of their high mutation performances
- On/off or phase angle function in applications such as static relays, light dimmers and appliance motor speed controllers
