TL072A Datasheet Low Noise JFET Dual Operational Amplifiers

Manufacturer: STMicroelectronics

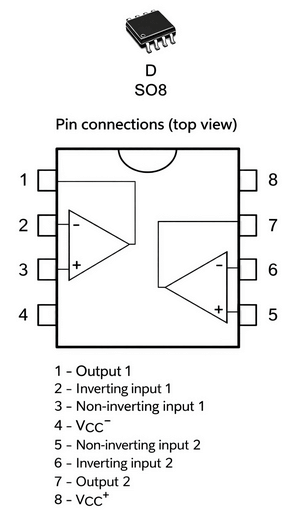

Overview: TL072, TL072A, TL072B Low noise JFET dual operational amplifiers Datasheet - production data D SO8 Pin connections (top view) 1 2 - 3 + 4 8 7 - 6 + 5 1 - Output 1 2 - Inverting input 1 3 - Non-inverting input 1 4 - VCC5.

This datasheet includes multiple variants, all published together in a single manufacturer document.

Datasheet Details

Part number	TL072A
Manufacturer	STMicroelectronics
File Size	503.33 KB
Description	Low noise JFET dual operational amplifiers
Datasheet	TL072A TL072 Datasheet (PDF)

General Description

The TL072, TL072A, and TL072B are high speed JFET input dual operational amplifiers incorporating well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit.

The devices

Key Features

Wide common-mode (up to VCC+) and differential voltage range.
Low input bias and offset current.
Low noise en = 15 nV/√Hz (typ).
Output short-circuit protection.
High input impedance JFET input stage.
Low harmonic distortion: 0.01 % (typical).
Internal frequency compensation.
Latch-up free operation.
High slew rate: 16 V/µs (typ) Related products.
See TL071 for single op amp version.
See TL074 for.
