TL072B - LOW NOISE J-FET DUAL OPERATIONAL AMPLIFIERS

General Description

The TL072, TL072A, and TL072B are high speed JFET input dual operational amplifiers incorporating well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit.

Key Features

  • Wide common-mode (up to VCC+) and differential voltage range.
  • Low input bias and offset current.
  • Low noise en = 15 nV/√Hz (typ).
  • Output short-circuit protection.
  • High input impedance JFET input stage.
  • Low harmonic distortion: 0.01 % (typical).
  • Internal frequency compensation.
  • Latch-up free operation.
  • High slew rate: 16 V/µs (typ) Related products.
  • See TL071 for single op amp version.
  • See TL074 for.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TL072B Low-Noise JFET-Input Operational Amplifiers Texas Instruments
TL072 OPERATIONAL AMPLIFIERS Motorola
TL072 Low-Noise JFET-Input Operational Amplifiers Texas Instruments
TL072 LOW NOISE DUAL J-FET OPERATIONAL AMPLIFIER UTC
TL072 LOW NOISE JFET INPUT OPERATIONAL AMPLIFIERS Diodes

Other Datasheets by STMicroelectronics

Part Number Description
TL072 Low noise JFET dual operational amplifiers
TL072A Low noise JFET dual operational amplifiers
TL071 Low noise JFET single operational amplifier
TL071A Low noise JFET single operational amplifier
TL071B Low noise JFET single operational amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

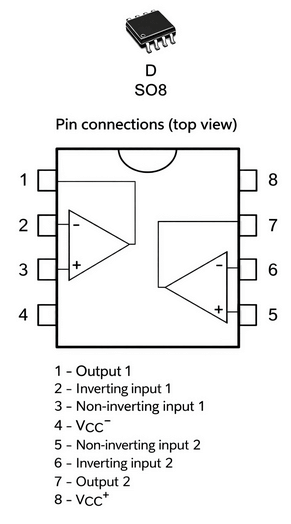

TL072, TL072A, TL072B Low noise JFET dual operational amplifiers Datasheet - production data D SO8 Pin connections (top view) 1 23+ 4 8 7 -6 +5 1 - Output 1 2 - Inverting input 1 3 - Non-inverting input 1 4 - VCC5 - Non-inverting input 2 6 -Inverting input 2 7 - Output 2 8 - VCC+ Features • Wide common-mode (up to VCC+) and differential voltage range • Low input bias and offset current • Low noise en = 15 nV/√Hz (typ) • Output short-circuit protection • High input impedance JFET input stage • Low harmonic distortion: 0.
