STMicroelectronics TS2007
TS2007 is a class D power audio amplifier. This device allows switching between two different gains: 6 or 12dB via a logic signal on the GS pin. TS2007IQT - DFN8 TS2007IQT - DFN8 1 8 2 7 3 6 4 5 The TS2007 is available in DFN8 3 x 3 mm lead- Able to drive up to 1.4 W into an 8 Ω load at 5 V, it free packages.| Part No. | TS2007 |
|---|---|
| Datasheet | TS2007 Download |
| Manufacturer |  STMicroelectronics |
| Description | 3W filter-free Class D audio power amplifier |
| Buy | Stock & Price |
FEATURES
● Operating range from VCC = 2.4 V to 5.5 V● Standby mode active low )
● Output power: 1.4 W at 5 V or 0.45 W at 3.0 V t(s into 8 Ω with 1% THD+N max. c
● Output power: 2.3 W at 5 V or 0.75 W at 3.0 V u into 4 Ω with 1% THD+N max. rod
● Fixed gain select: 6 dB or 12 dB P
● Low current consumption te
● Efficiency: 88% typ. le
● Signal-to-noise ratio: 94 dB typ. so
● PSRR: 63 dB typ at 217 Hz with 6 dB gain b
● PWM base frequency: 280 kHz O
● Low pop & click noise ) -
● Thermal shutdown protection t(s
● DFN8 3 x 3 mm package duc
APPLICATIONS
ro● Cellular phones P
● PDAs te
● Notebook PCs sole
DESCRIPTION

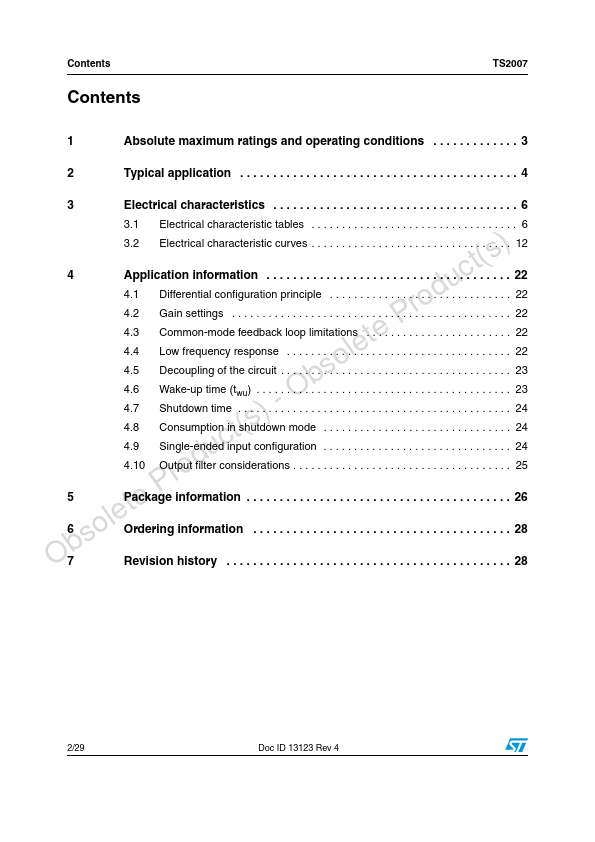

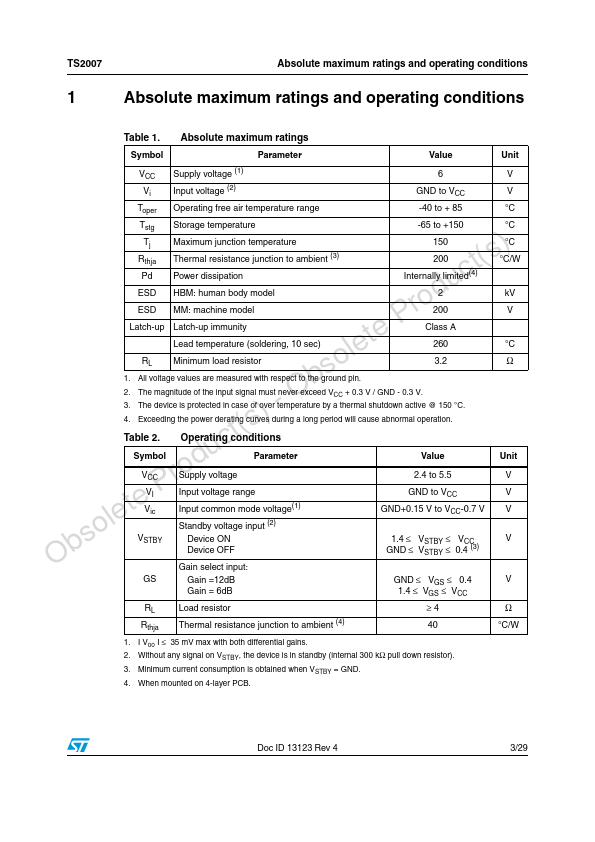

ObThe TS2007 is a class D power audio amplifier. achieves outstanding efficiency compared to typical class AB audio power amplifiers. A pop & click reduction circuitry provides low on/off switching noise while allowing the device to start within 5 ms. A standby function (active low) allows lowering the current consumption down to 10 nA typ. May 2011 Doc ID 13123 Rev 4 1/29 29 Contents Contents TS2007 1 Absolute maximum ratings and operating conditions . . . . . . . . . . . . .
