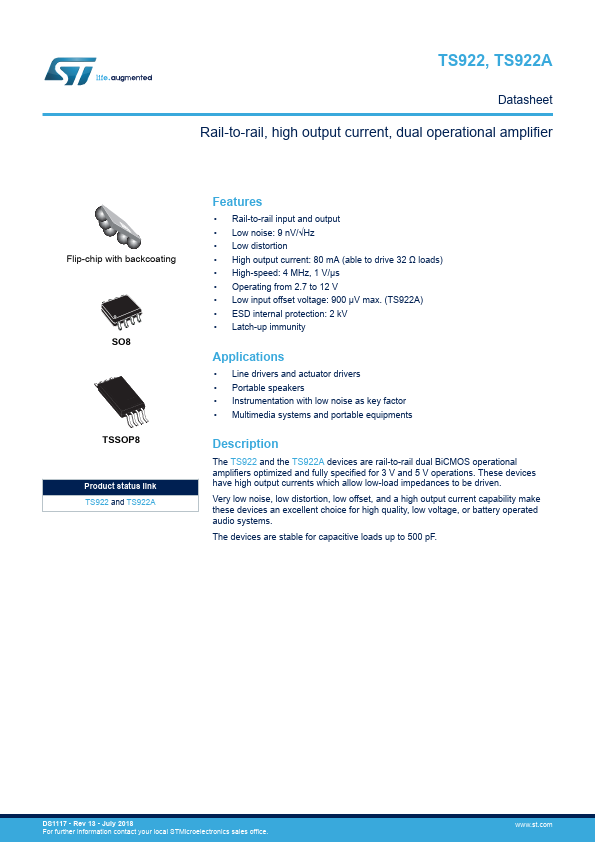

TS922, TS922A Rail-to-rail, high output current, dual operational amplifier Flip-chip with backcoating SO8 TSSOP8 Product status link TS922 and TS922A Features - Rail-to-rail input and output - Low noise: 9 nV/√Hz - Low distortion - High output current: 80 mA (able to drive 32 Ω loads) - High-speed: 4 MHz, 1 V/μs - Operating from 2.7 to 12 V - Low input offset voltage: 900 μV max. (TS922A) - ESD internal protection: 2 kV - Latch-up immunity Applications - Line drivers and actuator drivers - Portable speakers - Instrumentation with low noise as key factor - Multimedia systems and portable equipments Description The TS922 and the TS922A devices are rail-to-rail dual BiCMOS...
