STMicroelectronics X0202NN
The X02 SCR can be used as the on/off function in applications where topology does not offer high current for gate triggering. This device is optimized in forward voltage drop and inrush current capabilities for reduced power losses and high reliability in harsh environments.| Part No. | X0202NN |
|---|---|
| Datasheet | X0202NN Download |
| Manufacturer |  STMicroelectronics |
| Description | 1.25A sensitive gate SCR |
| Buy | Stock & Price |
FEATURES
● On-state rms current, IT(RMS) 1.25 A● Repetitive peak off-state voltage, VDRM/VRRM 600 or 800 V
● Triggering gate current, IGT (Q1) 50 to 200 µA
APPLICATIONS
● Ground fault circuit interrupters● Overvoltage crowbar protection in power supplies
● Capacitive ignition circuits
DESCRIPTION

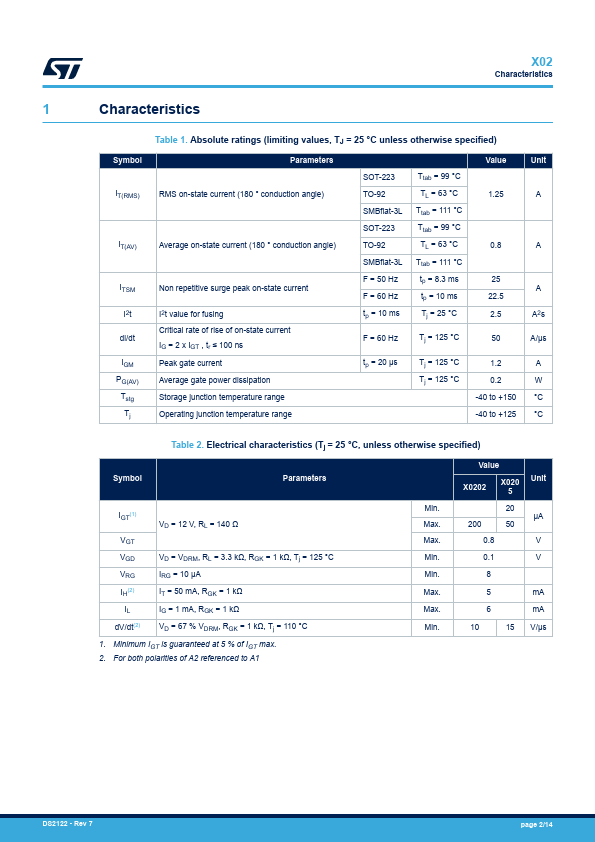

Product status link X02 Product summary IT(RMS) 1.25 A VDRM/VRRM 600, 800 V IGTstandard 50 to 200 µA DS2122 - Rev 7 - October 2025 For further information, contact your local STMicroelectronics sales office. X02 Characteristics 1 Characteristics Symbol IT(RMS) IT(AV) ITSM I2t dl/dt IGM PG(AV) Tstg Tj Table 1. Absolute ratings (limiting values, TJ = 25 °C unless otherwise specified) Parameters RMS on-state current (180 ° conduction angle) Average on-state current (180 ° conduction angle) Non repetitive surge peak on-state current I2t value for fusing Critical rate of rise of on-state current IG = 2 x IGT , tr ≤ 100 ns Peak gate current Average gate power dissipation Storage junction temperatu...
