STMicroelectronics X0402MH
The X04 series is 4 A SCR housed in compact through hole IPAK package. This highly sensitive device is suited to home appliances or power tools and industrial systems and drives loads up to 4 A.| Part No. | X0402MH |
|---|---|
| Datasheet | X0402MH Download |
| Manufacturer |  STMicroelectronics |
| Description | 4A Sensitive gate SCR |
| Buy | Stock & Price |
FEATURES
● 4 A SCR● Sensitive SCR: IGT = 200 µA
● VDRM / VRRM = 600 V and VDSM / VRSM = 750 V
● 125 °C maximum junction temperature Tj
● IPAK package
● Halogen-free molding, lead-free plating
● ECOPACK2 compliant
APPLICATIONS
● Actuators● Ignitors
● Inrush current limiting circuits
DESCRIPTION

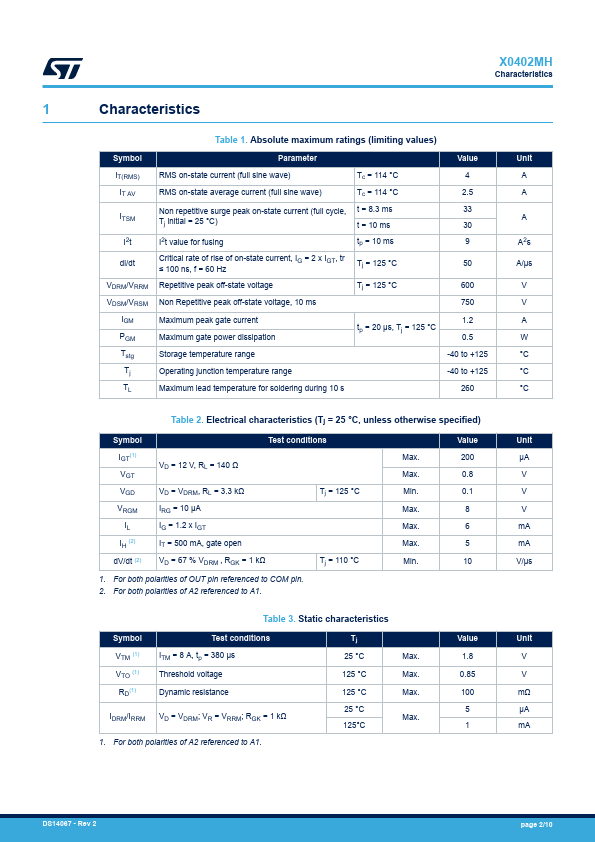

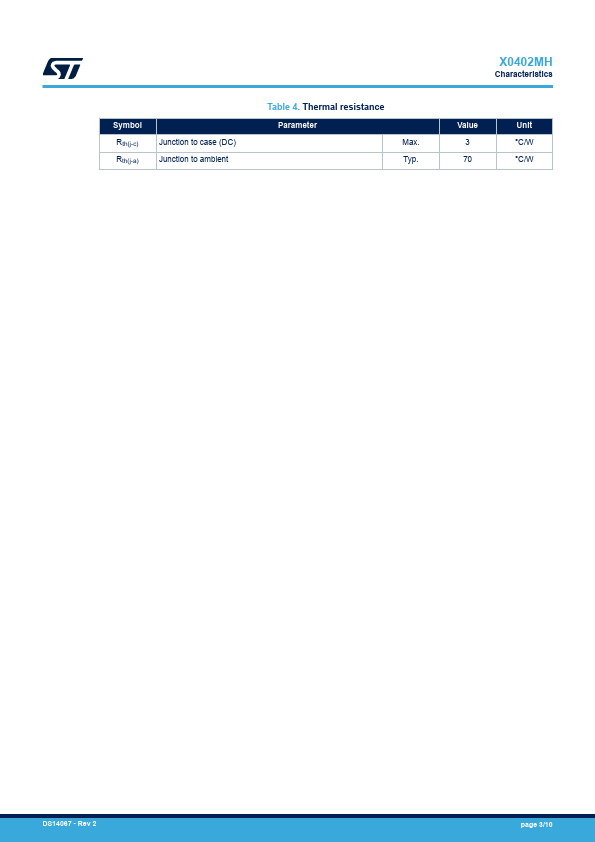

DS14067 - Rev 2 - December 2024 For further information contact your local STMicroelectronics sales office. X0402MH Characteristics 1 Characteristics Table 1. Absolute maximum ratings (limiting values) Symbol IT(RMS) IT AV ITSM I2t dl/dt VDRM/VRRM VDSM/VRSM IGM PGM Tstg Tj TL Parameter RMS on-state current (full sine wave) RMS on-state average current (full sine wave) Non repetitive surge peak on-state current (full cycle, Tj initial = 25 °C) I2t value for fusing Critical rate of rise of on-state current, IG = 2 x IGT, tr ≤ 100 ns, f = 60 Hz Repetitive peak off-state voltage Non Repetitive peak off-state voltage, 10 ms Maximum peak gate current Maximum gate power dissipation Storage temperature...
